KA2880HA2 KAKU 220-240V AC Axial Fan

Description

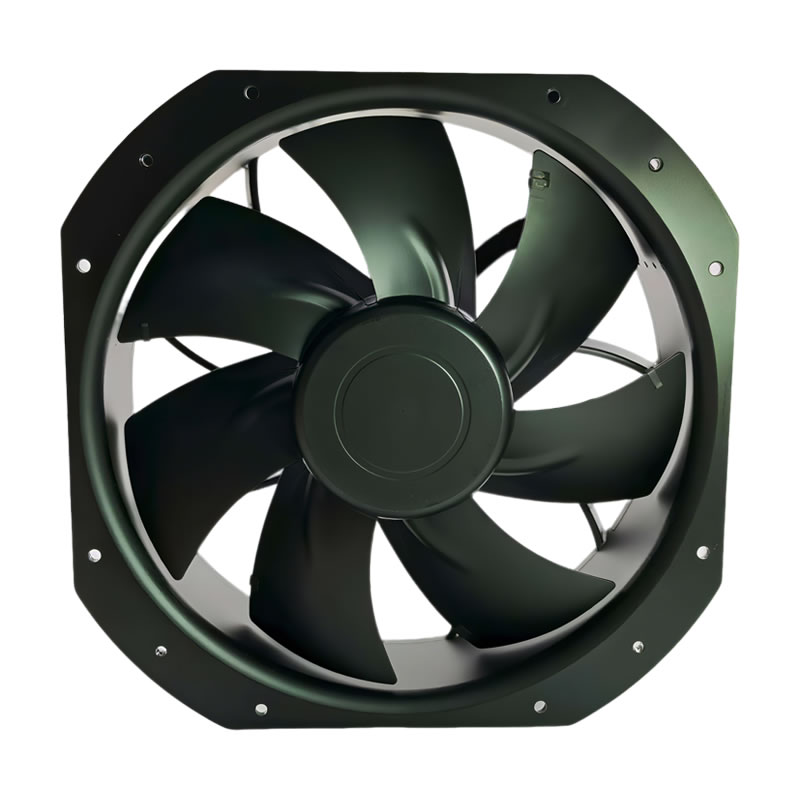

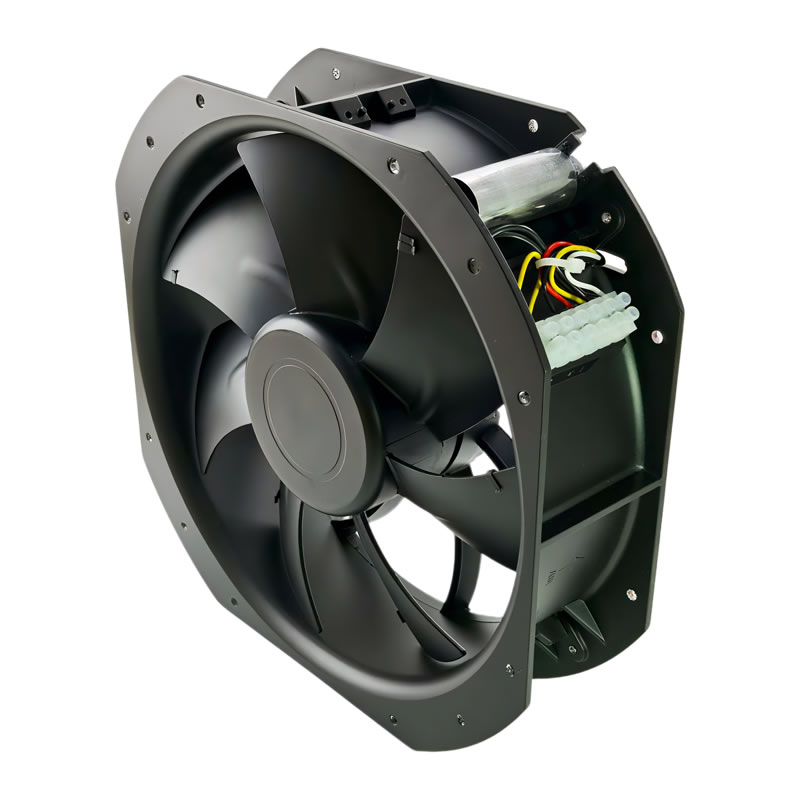

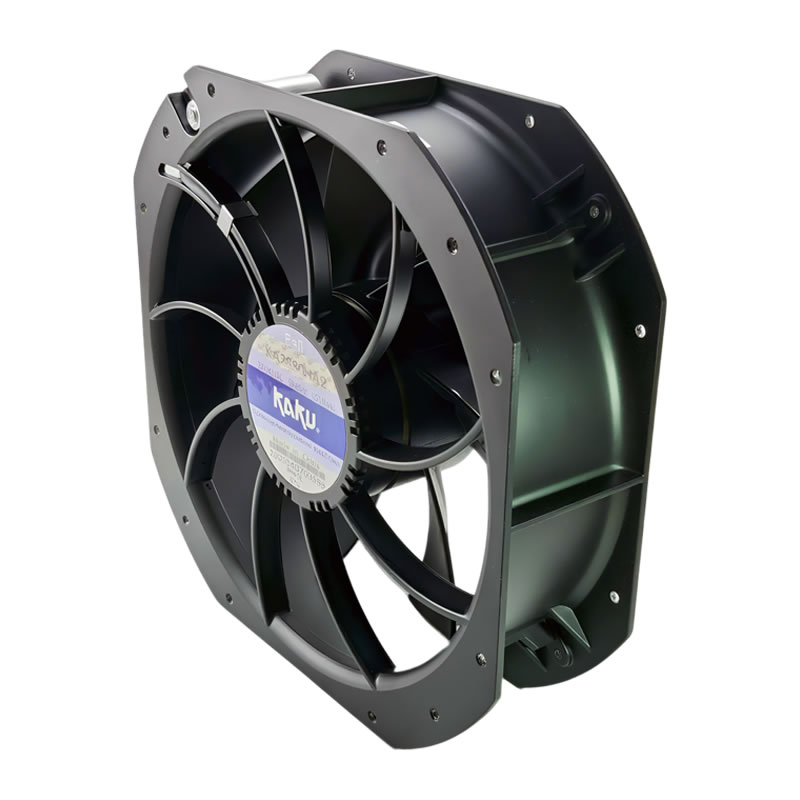

The KAKU KA2880HA2 is a high-performance AC axial fan measuring 280 x 280 x 80 mm. It operates on 220-240V AC at 50/60 Hz, drawing 0.57/0.64 A of current and consuming 140/190 W of power, respectively. The fan delivers a significant airflow of 1090/1244 CFM (1852/2114 m³/h) and provides a static pressure of 1.25/1.03 inchH2O (317/262 Pa). It operates at speeds of 2800/3200 RPM, with noise levels ranging from 70/77 dB(A). This fan is built with a high-temperature resistant metal housing and impeller, and weighs 2.52 kg. Designed for high-volume cooling in demanding industrial applications.

KA2880HA2 Fan Parameters
Manufacturer: KAKU
Model: KA2880HA2
Fan Type: AC Axial Fan
Dimensions: 280 x 280 x 80 mm
Rated Voltage: 220-240V AC
Frequency: 50/60 Hz
Current Rating: 0.57/0.64 A
Power Consumption: 140/190 W
Airflow: 1090/1244 CFM (1852/2114 m³/h)
Static Pressure: 1.25/1.03 inchH2O (317/262 Pa)
Speed: 2800/3200 RPM
Noise Level: 70/77 dB(A)
Housing Material: High-temperature resistant metal
Impeller Material: High-temperature resistant metal
Weight: 2.52 kg
Termination: Wire leads
Application: The KA2880HA2 is a powerful AC axial fan engineered for applications requiring substantial airflow and robust cooling performance. Its high power and airflow make it suitable for industrial machinery, ventilation systems, large electrical enclosures, welding equipment, and other heavy-duty applications where effective heat dissipation is critical.
