KA2206HA3 KAKU 380V AC Axial Fan

Description

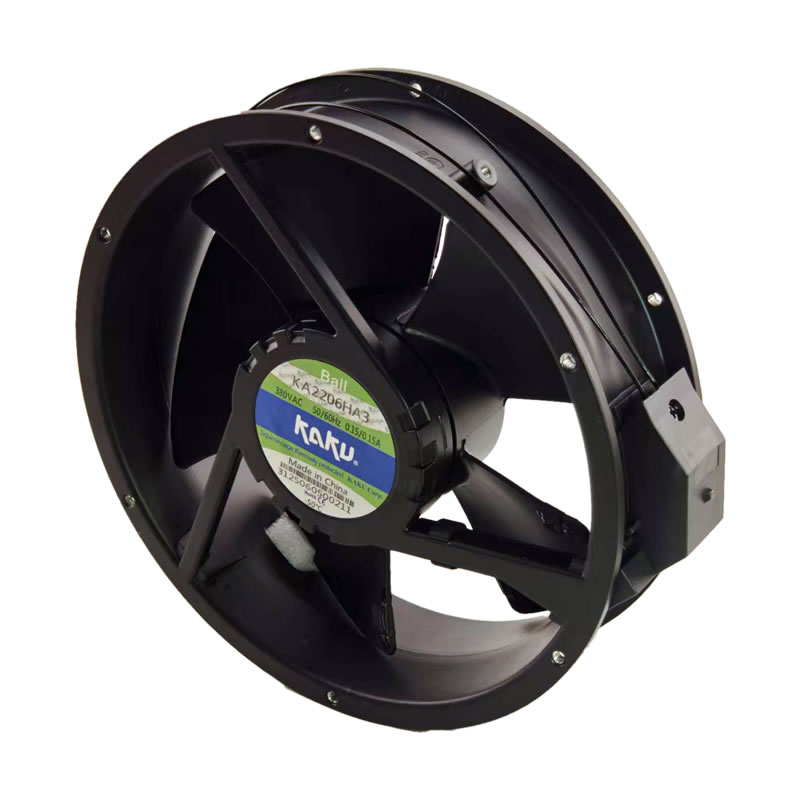

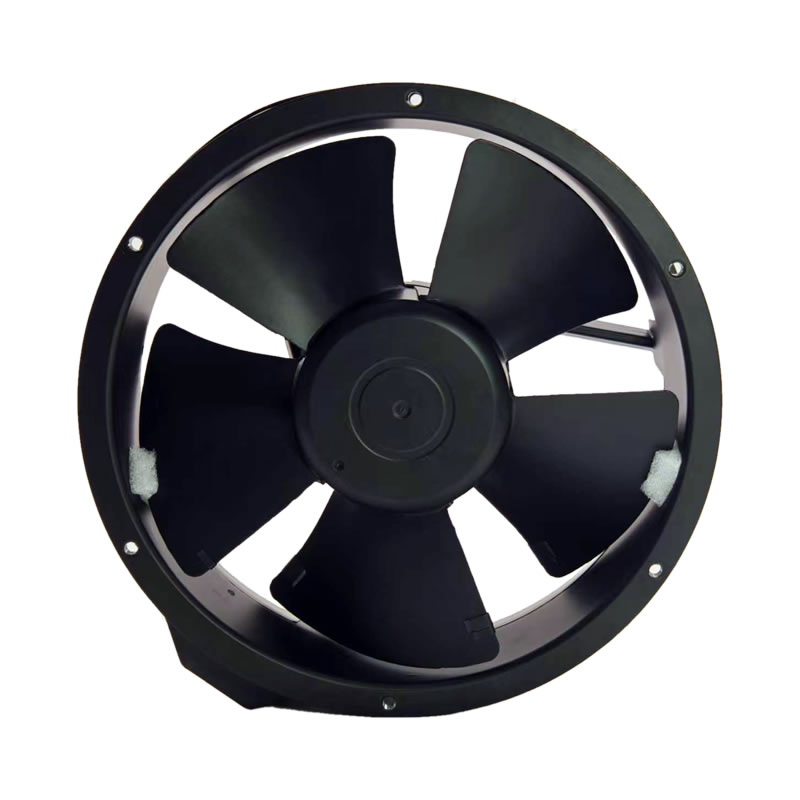

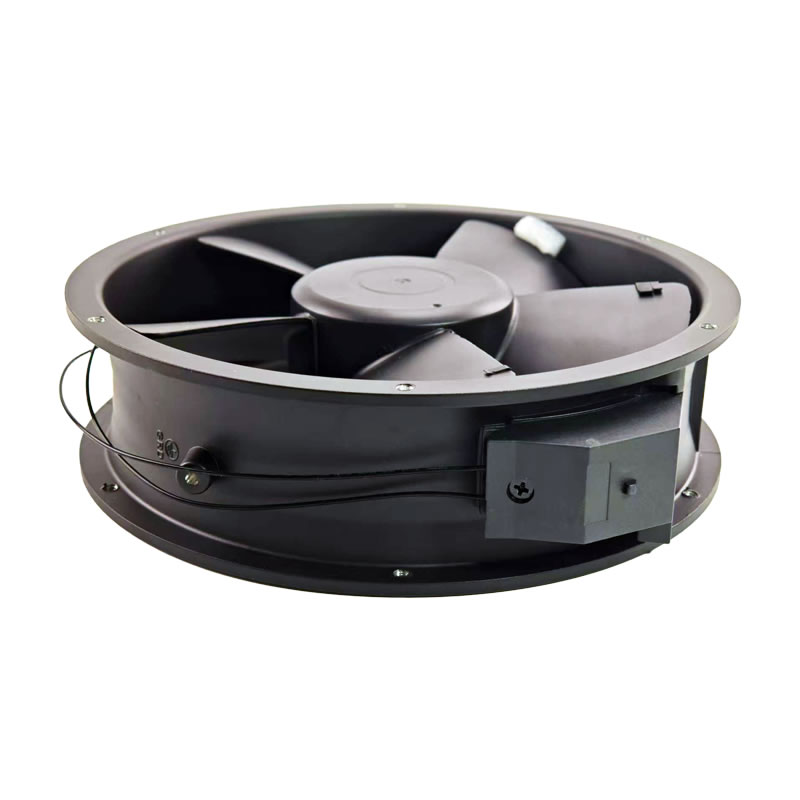

The KAKU KA2206HA3 is a robust 380V AC Axial Fan with dimensions of 222x60mm, engineered for reliable cooling in industrial environments, compatible with both 50Hz and 60Hz frequencies. This fan has a rated current of 0.15A and is capable of delivering 360CFM airflow with a static pressure of 99.6Pa (0.40INH2O). When operating at 50Hz, this fan runs at 2500RPM, producing a noise level of 59dB(A). At 60Hz, the fan’s performance shifts, reaching 2880RPM with a noise level of 61dB(A). Constructed with a metal frame and impeller for enhanced durability, and featuring a 2-wire termination, the KA2206HA3 is suitable for various industrial control cabinets, power supplies, and ventilation systems requiring efficient 380V AC cooling.

KA2206HA3 Fan Parameters
Model: KA2206HA3
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 222 x 60 mm
Nominal Voltage: 380 V AC
Frequency: 50/60 Hz
Rated Current: 0.15 A
Airflow: 360 CFM (611.6 m³/h)
Static Pressure: 0.40 IN H2O (99.6 Pa / 10.2 mmH2O)
Speed: 2500 RPM (50Hz) / 2880 RPM (60Hz)
Noise Level: 59 dB(A) (50Hz) / 61 dB(A) (60Hz)
Weight: 1310 g
Frame Material: Metal
Impeller Material: Metal
Termination: 2-wire leads
Application: Industrial control cabinets, power supplies, and ventilation systems.
