Description

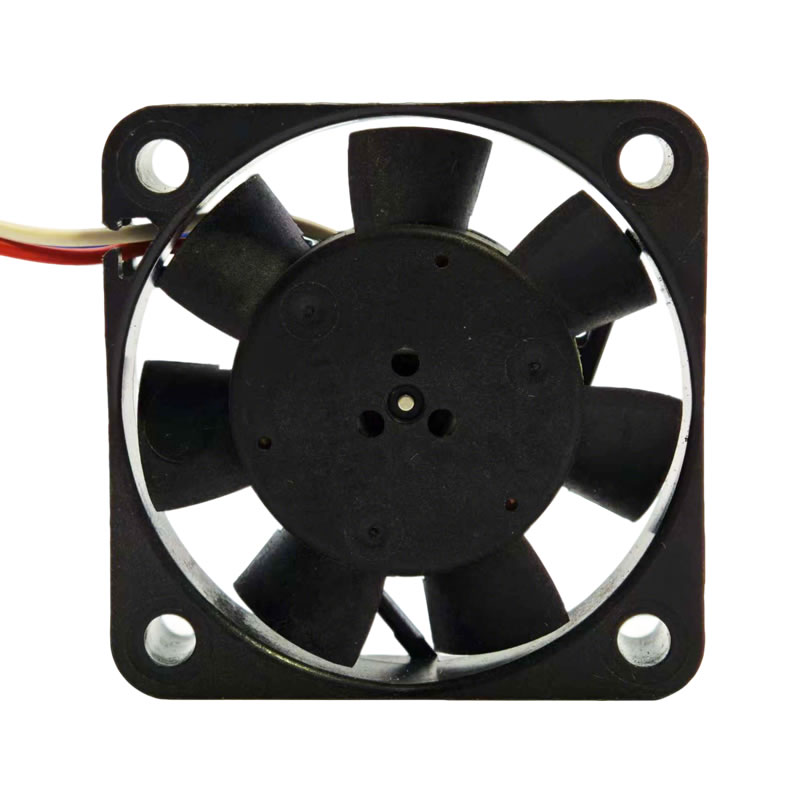

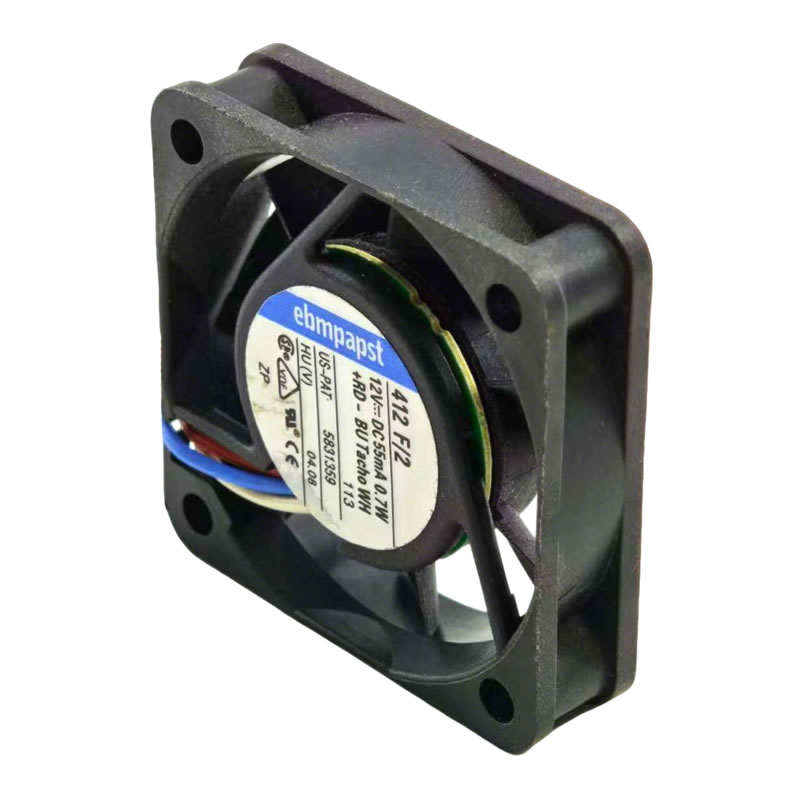

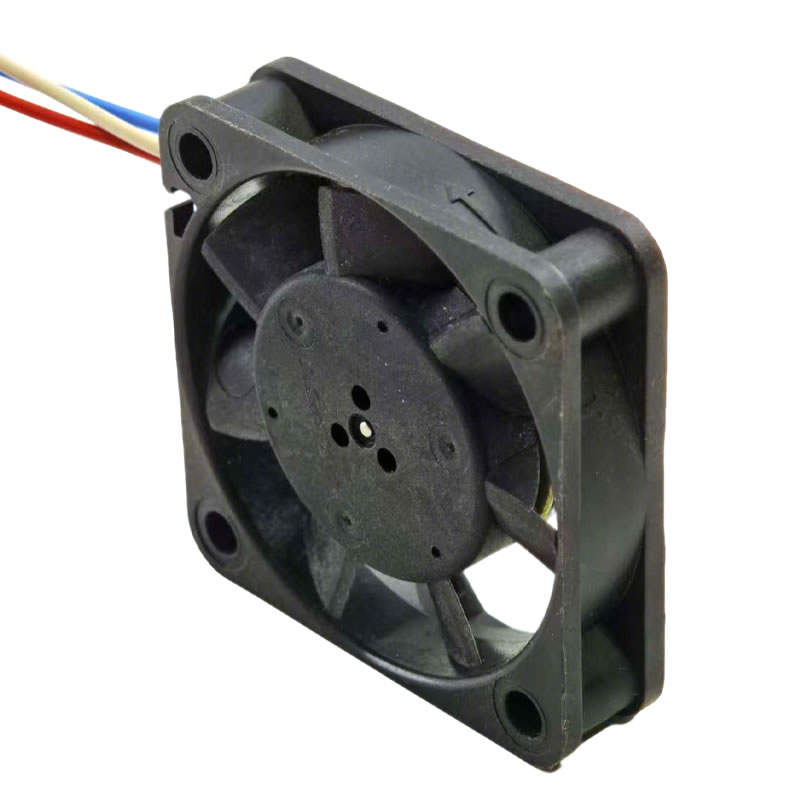

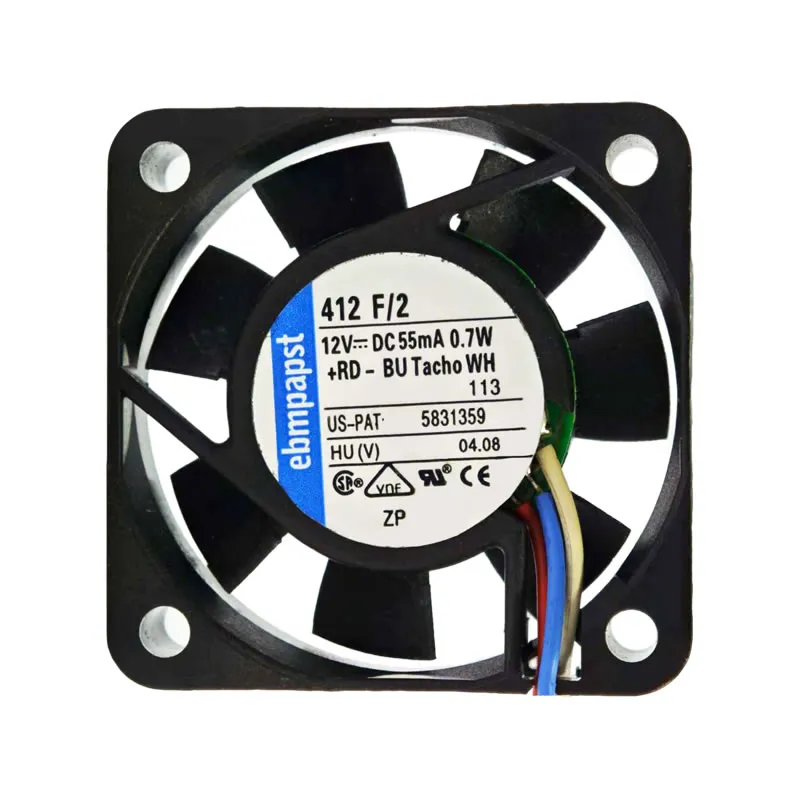

The ebmpapst 412F/2 is a compact DC axial fan with dimensions of 40 x 40 x 10 mm. It operates on a rated voltage of 12V DC, drawing 55 mA of current and consuming 0.7 W of power. The fan runs at a speed of 5400 RPM, delivering an airflow of 9 m³/h with a static pressure of 33 Pa. With a low noise level of 22 dB(A), it is suitable for noise-sensitive applications. The fan features a sleeve bearing and is constructed from plastic for both its housing and impeller. It is terminated with three-wire leads and has an ambient operating temperature range of -20 °C to 85 °C.
412F/2 Fan Parameters
Manufacturer: ebmpapst
Model: 412F/2
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12V DC
Current Rating: 55 mA
Power Consumption: 0.7 W
Airflow: 9 m³/h
Static Pressure: 33 Pa
Speed: 5400 RPM
Noise Level: 22 dB(A)
Weight: 0.017 kg
Bearing Type: Sleeve bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Ambient Operating Temperature: -20 °C to 85 °C
Storage Temperature: -40 °C to 85 °C
Service Life: L10 at 20 °C 45,000 h; L10 at 40 °C 30,000 h; L10 at 60 °C 15,000 h; L10 at maximum temperature 6,000 h; L10 acc. to IPC 9591 at 40 °C 50,000 h
Approval: CE, EAC, UL, VDE, CSA
Application
The 412F/2 fan is suitable for applications that require cooling in very confined spaces, such as in compact electronics, IT equipment, medical devices, and telecommunication equipment
