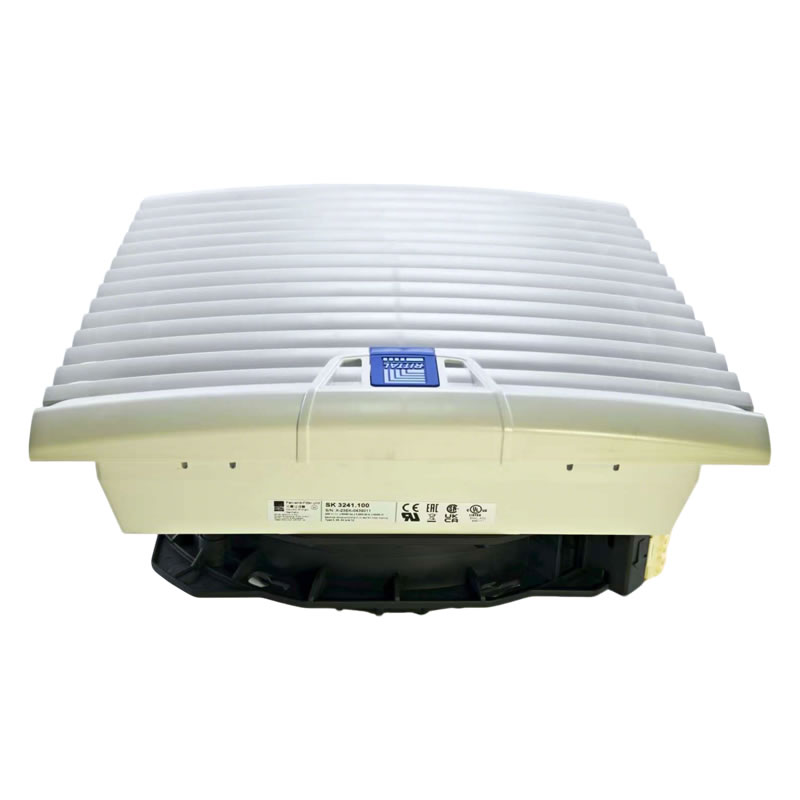

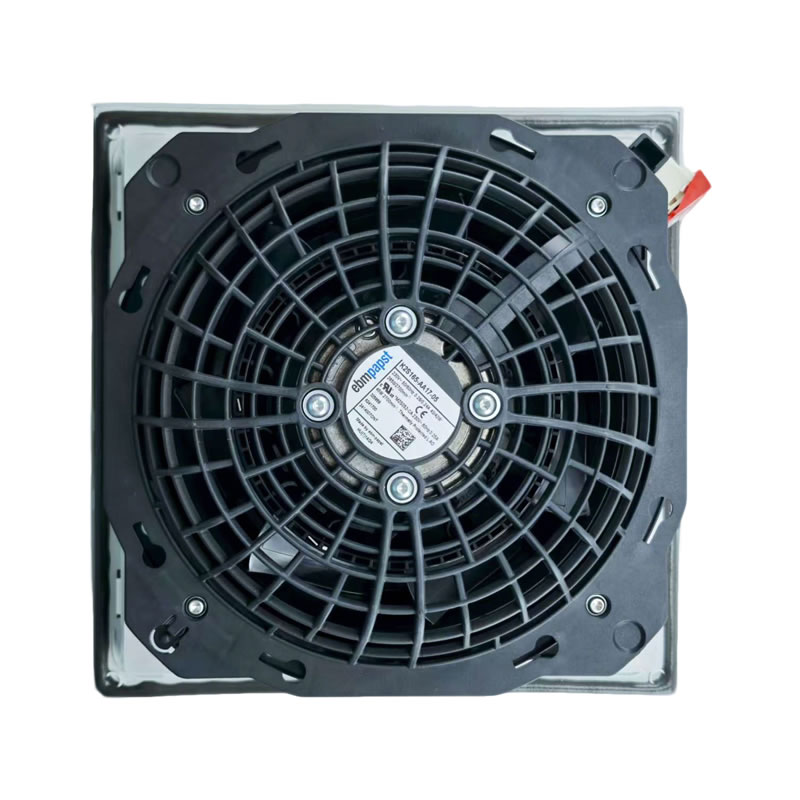

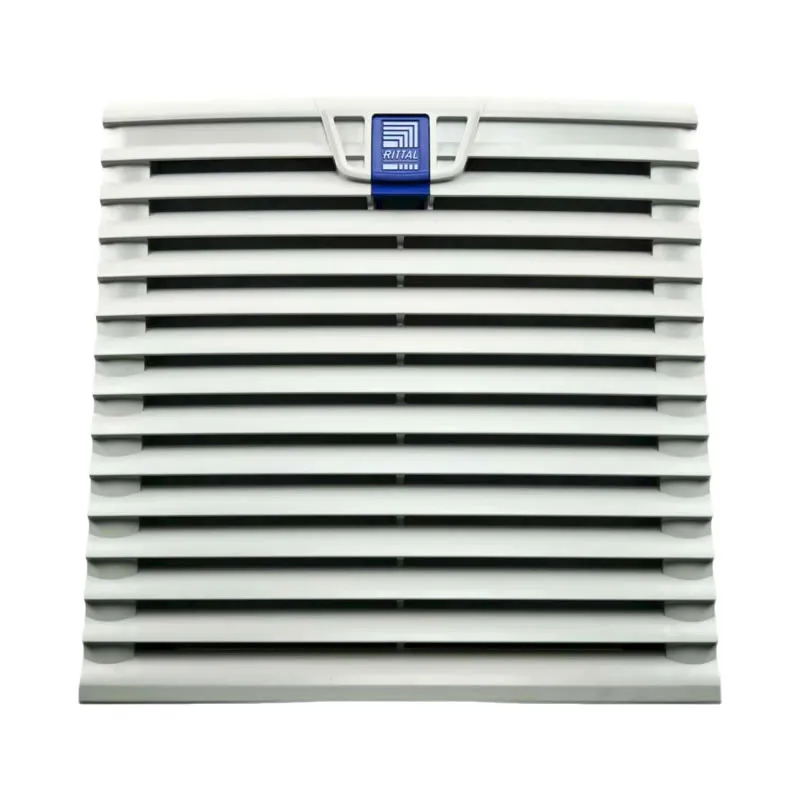

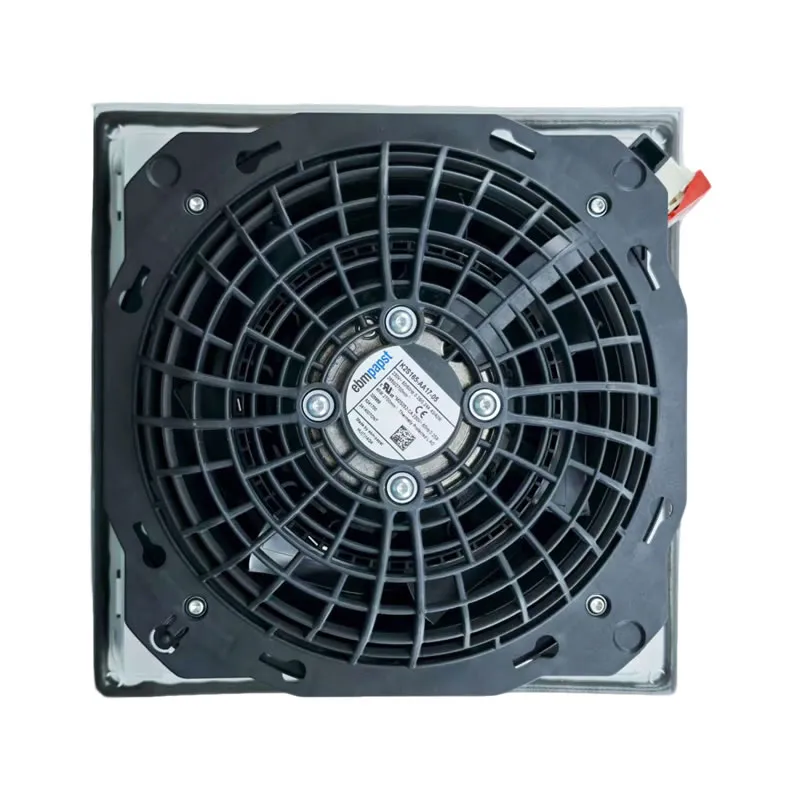

Rittal SK3241.100 TopTherm Filter Fan Unit 230V

Description

The Rittal SK3241.100 is a highly efficient filter fan unit designed for industrial applications. It operates on 230 VAC with a frequency of 50/60 Hz and is part of the TopTherm series. This fan delivers a high unimpeded air throughput of up to 250 m³/h and has a rated power of 40/42 W. It features a diagonal, shaded-pole motor and is designed for easy, tool-free installation.

SK 3241.100 Parameters
Model: SK3241.100
Manufacturer: Rittal
Type: Filter Fan Unit
Operating Voltage: 230 V AC
Frequency: 50/60 Hz
Rated Power: 40/42 W
Rated Current: 0.26/0.24 A
Airflow (unimpeded): 230/250 m³/h
Noise Level: 54/56 dB(A)
Dimensions: 255 x 255 mm
Weight: 2.24 kg
Life Expectancy: 61,000 h (50 Hz), 60,000 h (60 Hz)

Application
The Rittal SK3241.100 is primarily used in industrial automation and manufacturing for cooling electronic enclosures, control cabinets, and other equipment where efficient and reliable heat dissipation is essential. Its design ensures a long service life and robust performance in demanding environments.
