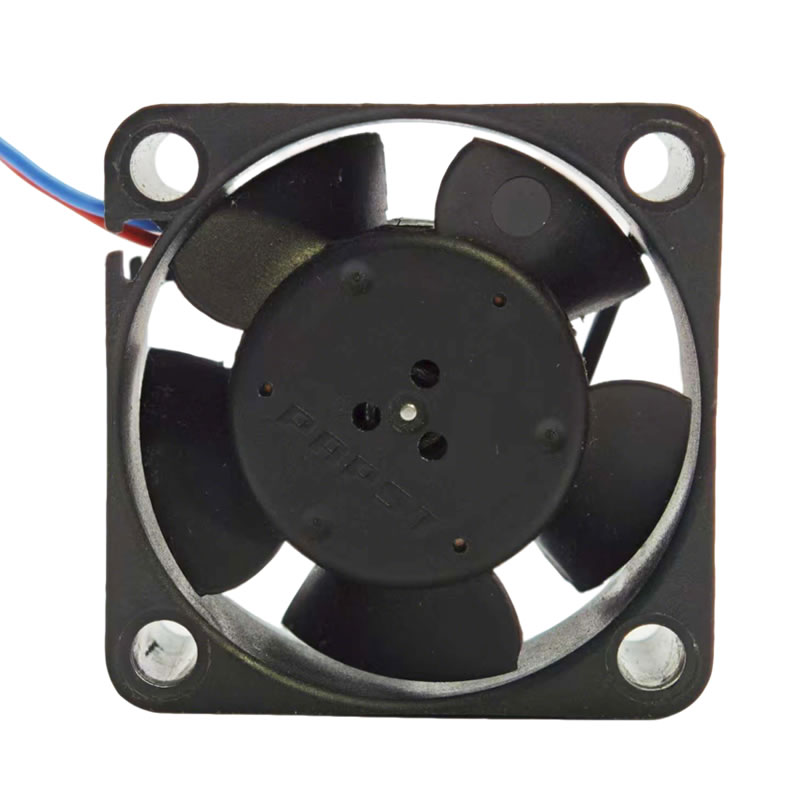

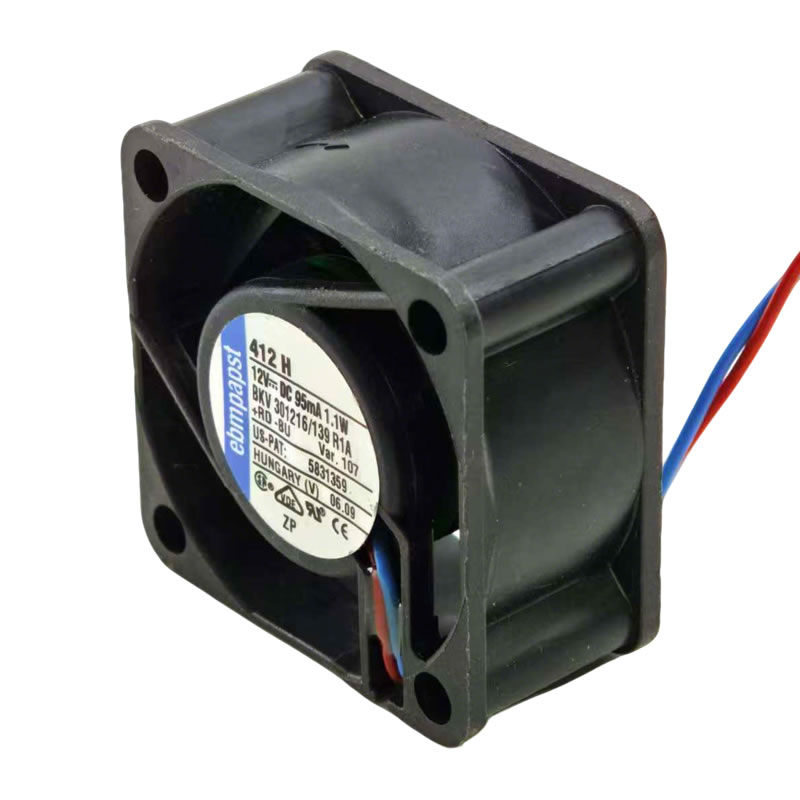

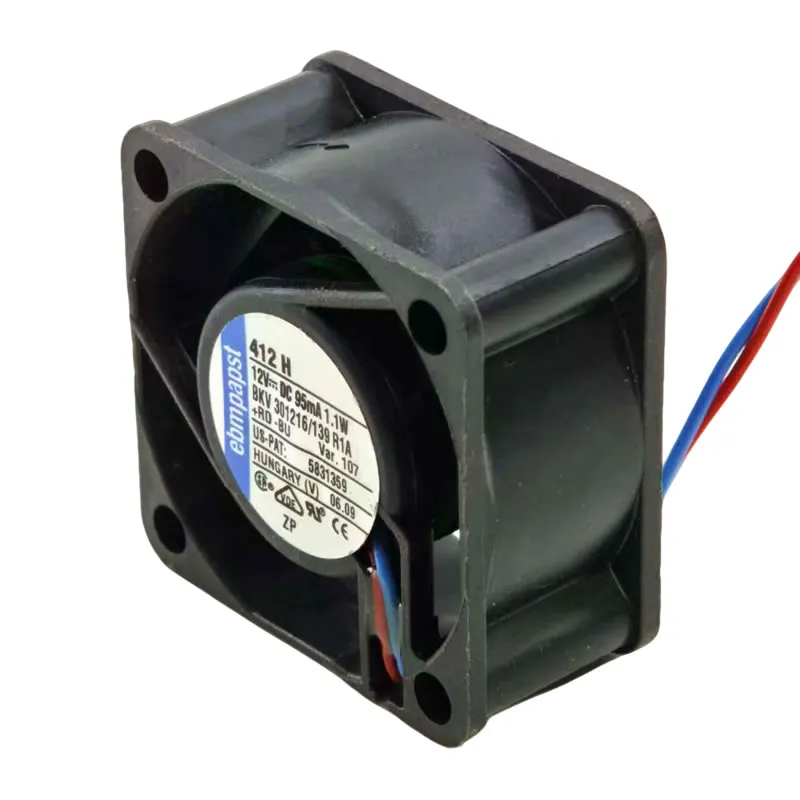

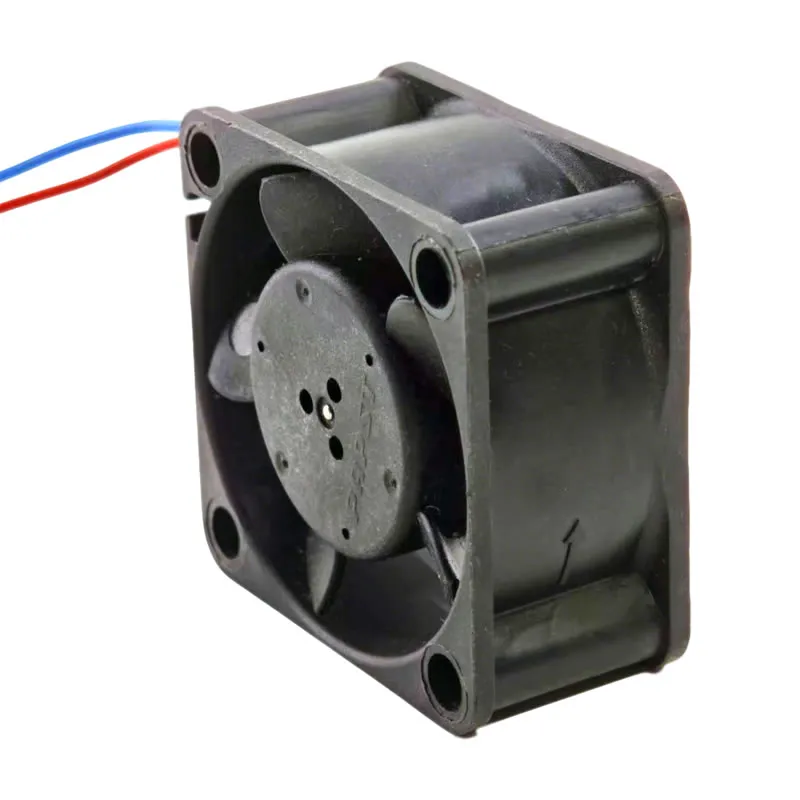

412H ebmpapst 12VDC 95mA Axial Fan

Description

The ebmpapst 412H is a high-speed DC axial fan with dimensions of 40 x 40 x 20 mm. It operates on a rated voltage of 12V DC, within a range of 10-14V, drawing 95 mA of current and consuming 1.1 W of power. The fan delivers an airflow of 13.5 m³/h at a high speed of 8100 RPM, with a noise level of 29 dB(A). It features a sleeve bearing with a service life of 45,000 hours at 20°C (17,500 hours at 60°C). The housing is made from glass-fiber reinforced PBT plastic, and the impeller from glass-fiber reinforced PA plastic. The fan weighs 0.027 kg, is terminated with stripped and tin-plated AWG 28 cable leads, and includes motor protection against reversed polarity and blocked rotors.

412H Fan Parameters
Manufacturer: ebmpapst
Model: 412H
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12V DC
Operating Voltage Range: 10-14 V
Current Rating: 95 mA
Power Consumption: 1.1 W
Airflow: 13.5 m³/h
Speed: 8100 RPM
Noise Level: 29 dB(A)
Weight: 0.027 kg
Bearing Type: Sleeve bearing
Termination: Cable Leads (AWG 28, TR 64, stripped and tin-plated)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 °C to 60 °C
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Motor Protection: Protection against reverse polarity and blocked rotor.
Service Life: L10 at 20 °C 45,000 h; L10 at 60 °C 17,500 h
Approval: VDE, CSA, UL
Other name: BKV301216/139

Application
The 412H fan is suitable for applications requiring high airflow and speed in a compact size, such as in embedded systems, small electronics, and cooling solutions where space is limited.
