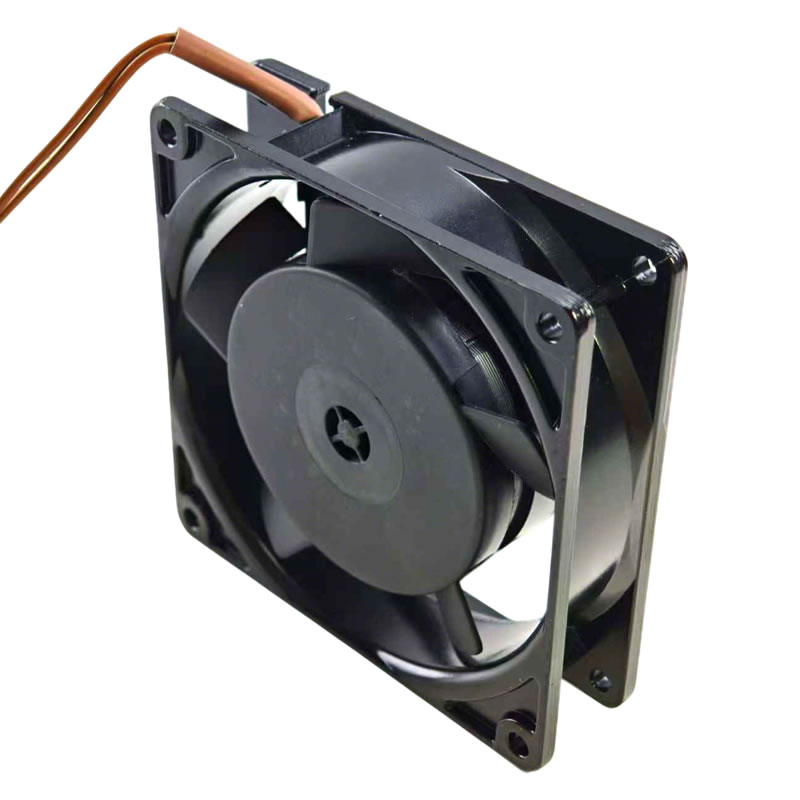

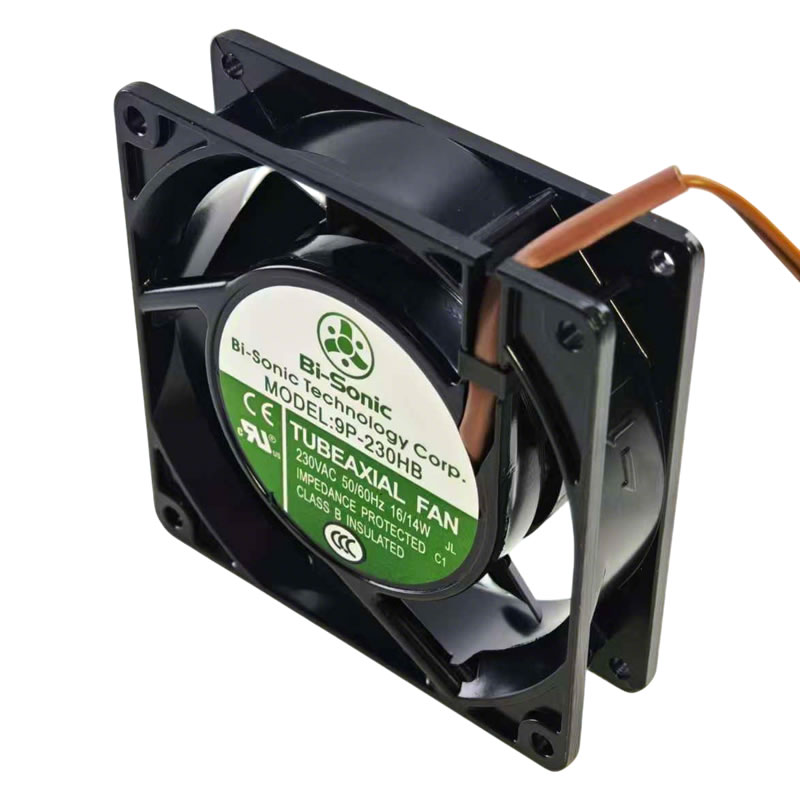

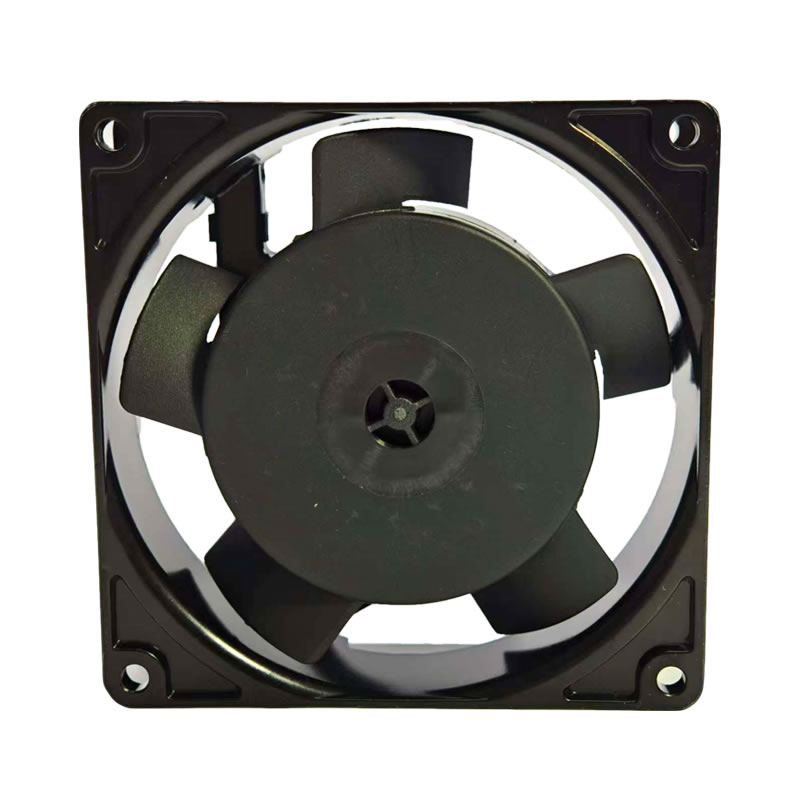

9P-230HB Bi-Sonic 230V AC Axial Fan 92x92x25mm

Description

The Bi-Sonic 9P-230HB is a high-performance AC axial fan with dimensions of 92 x 92 x 25 mm. This fan operates on 230V AC at both 50 Hz and 60 Hz, with a current rating of 0.08/0.07 A and power consumption of 16/14 W. It provides an airflow of 26.6 CFM (45.2 m³/h) at 2400 RPM and 31.9 CFM (54.2 m³/h) at 2900 RPM. The fan generates a static pressure of 3.2/4.5 mmH₂O (31.4/44.1 Pa) with a noise level of 35/41 dB(A). It connects via two wire leads and is suitable for cooling in various electrical and industrial systems.

9P-230HB Fan Parameters
Manufacturer: Bi-Sonic
Model: 9P-230HB
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 230V
Rated Frequency: 50/60 Hz
Current Rating: 0.08/0.07 A
Power Consumption: 16/14 W
Airflow: 26.6/31.9 CFM (45.2/54.2 m³/h)
Static Pressure: 3.2/4.5 mmH₂O (31.4/44.1 Pa)
Speed: 2400/2900 RPM
Noise Level: 35/41 dB(A)
Termination: Two Wire Leads
Weight: 280 g
Application: The 9P-230HB is suitable for cooling in compact electronic devices, small appliances, and industrial cabinets.
