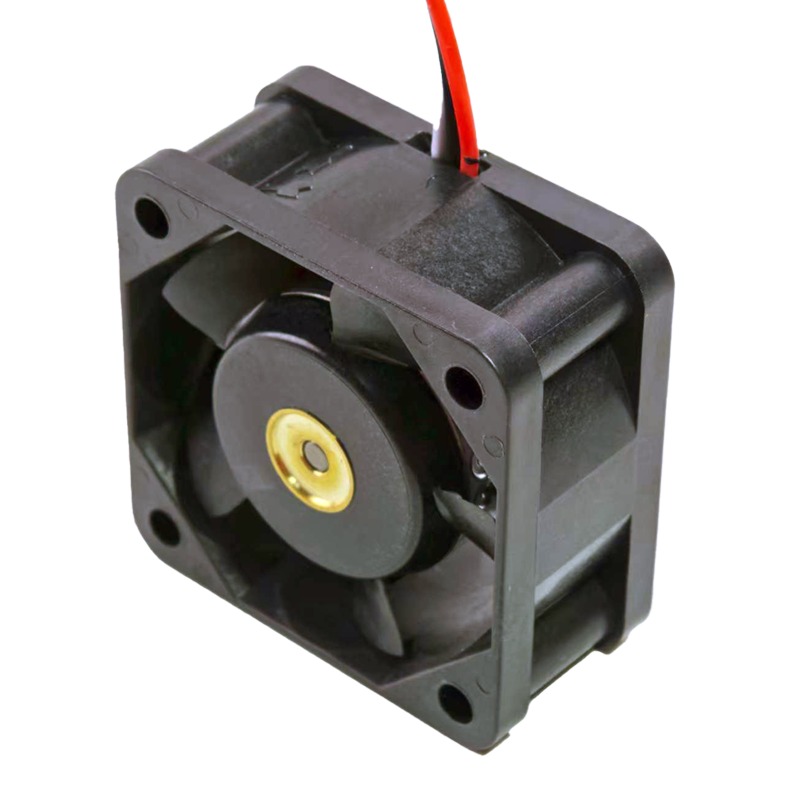

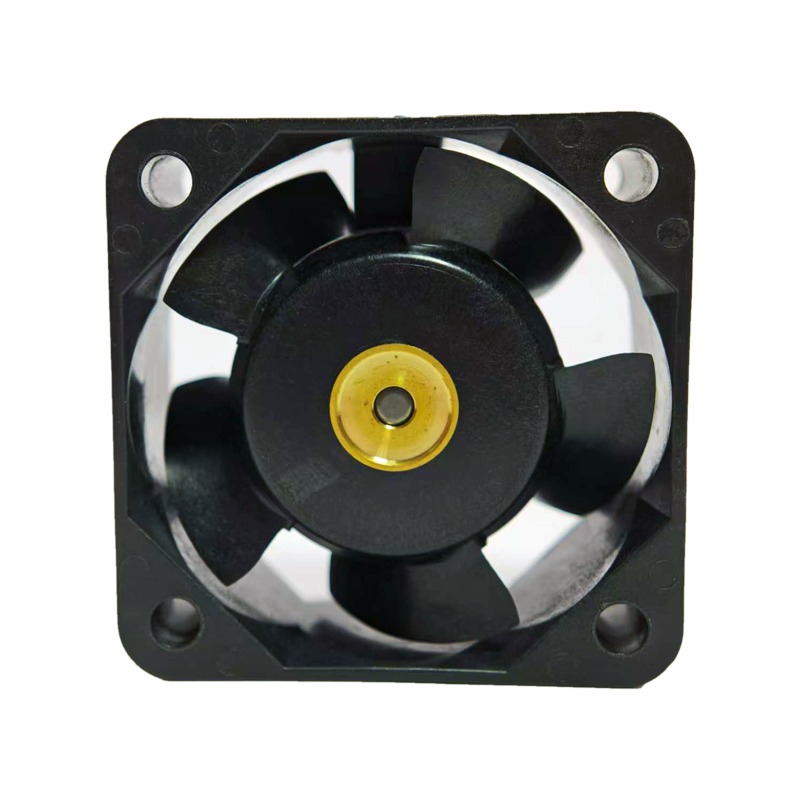

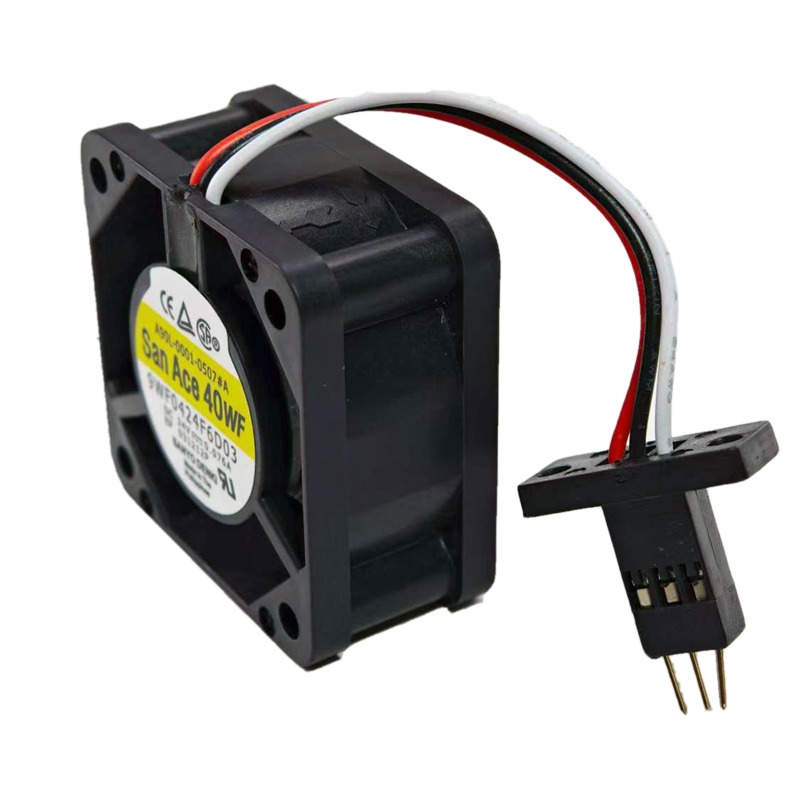

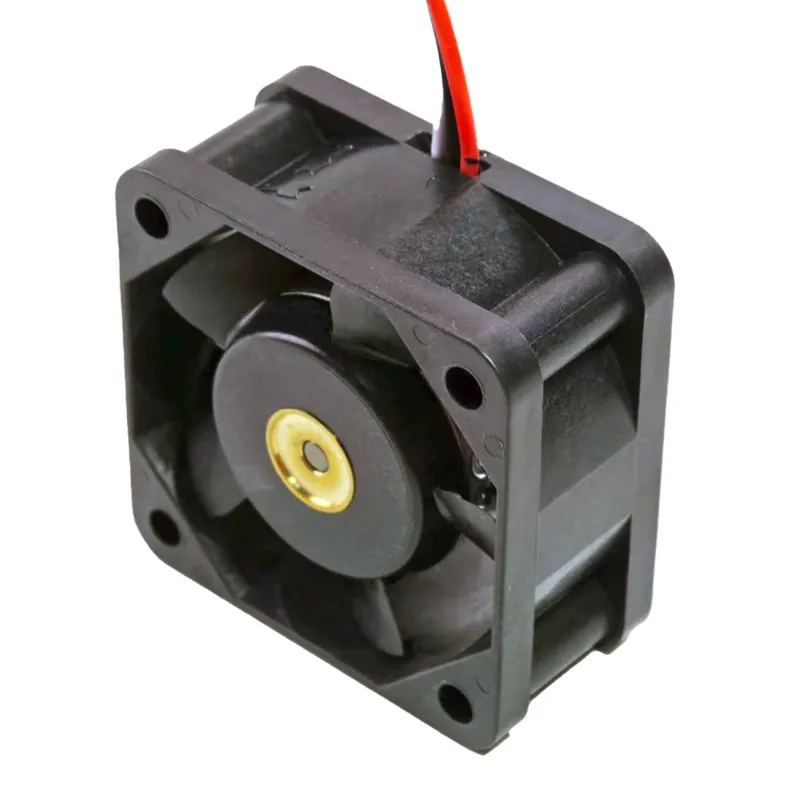

9WF0424F6D03 Sanyo Denki 24V DC Axial Fan

Description

The Sanyo Denki 9WF0424F6D03 is a high-performance 24VDC Waterproof Axial Fan with dimensions of 40x40x28mm. It operates within a voltage range of 13.8 to 27.6VDC. The fan has a rated current of 0.076A and a power consumption of 1.824W, achieving a high speed of 11000RPM. It provides an airflow of 13.2m³/h (7.77CFM) and a noise level of 30dB(A).

This fan is equipped with ball bearings for durable and reliable operation, offering a life expectancy of 40000h (L10) at 60°C. Both the frame and impeller are made of UL94V-0 rated plastic, designed for high resistance to water and dust, resulting in an IP68 protection rating. It features a 3-wire termination, typically including connections for power (Red: +), ground (Black: -), and speed sensor (Yellow: Tachometer). This model incorporates current blocking protection and reverse polarity protection. It is designed to operate within an ambient temperature range of -20 to 70°C and holds UL, CSA, TUV, CE approvals. It is suitable for outdoor equipment, industrial control cabinets, telecommunication base stations, and other applications exposed to dust, water, or high humidity requiring robust, high-speed cooling with monitoring.

9WF0424F6D03 Fan Parameters
Model: 9WF0424F6D03
Manufacturer: Sanyo Denki
Type: DC Axial Fan, Waterproof / Dustproof (IP68)
Dimensions: 40 x 40 x 28 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 13.8 .. 27.6 V DC
Rated Current: 0.076 A
Power Consumption: 1.824 W
Speed: 11000 RPM
Airflow: 13.2 m³/h (7.77 CFM)
Static Pressure: 144 Pa (0.58 INCHH2O)
Noise Level: 30 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Protection Rating: IP68
Weight: 50 g
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 60 °C: 40000 h
Termination: 3-wire leads (Red: +, Black: -, Yellow: Tachometer)
Motor Protection: Current Blocking Protection, Reverse Polarity Protection
Features: Tachometer Output
Approval: UL, CSA, TUV, CE
Application: Suitable for outdoor equipment, industrial control cabinets, telecommunication base stations, and other applications exposed to dust, water, or high humidity requiring robust, high-speed cooling with monitoring.
