Description

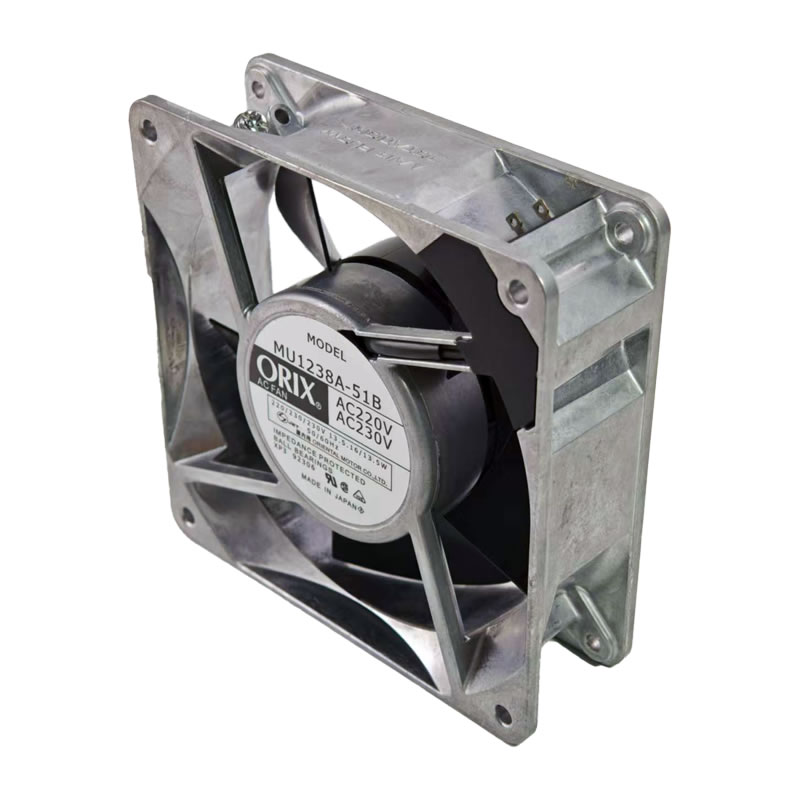

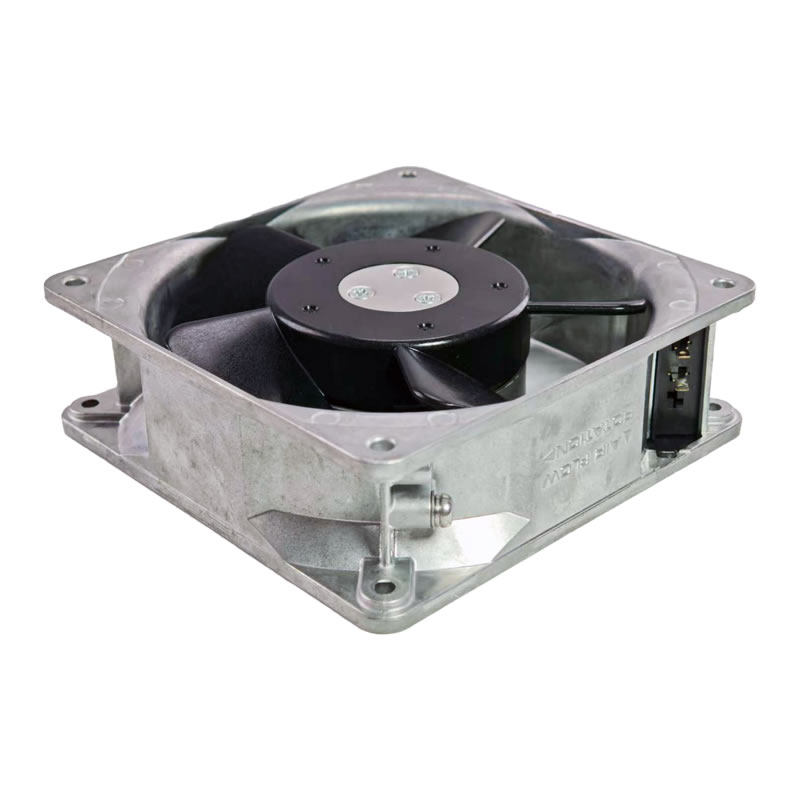

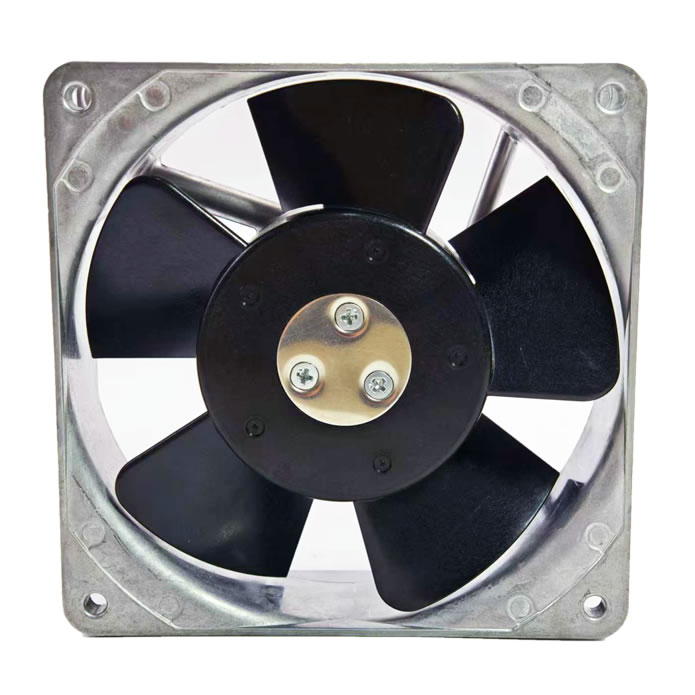

The ORIX MU1238A-51B is an AC Axial Fan with dimensions of 120x120x38mm, operating on single-phase 220/230VAC at 50/60Hz. At 50Hz, it draws 0.10A (13.5W), spins at 2800RPM, delivers 2.7m³/min (95.3CFM) airflow, and generates 81Pa (0.325IN H2O) static pressure with 43dB(A) noise. At 60Hz, it maintains 0.10A (13.5W), reaches 3250RPM, provides 3.0m³/min (106CFM) airflow, and the same static pressure with 46dB(A) noise. This fan features a durable die-cast aluminum frame, a plastic (polycarbonate) impeller, and ball bearings, along with impedance protection and 2-wire termination. It is suitable for various industrial cooling and ventilation applications, including control cabinets, power supplies, and general equipment cooling.
MU1238A-51B Fan Parameters
Model: MU1238A-51B
Manufacturer: ORIX
Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 220/230 V AC
Frequency: 50/60 Hz
Rated Current: 0.10 A (220/230 V, 50 Hz), 0.10 A (230 V, 60 Hz)
Power Consumption: 13.5 W (220 V, 50 Hz), 13.5 W (230 V, 60 Hz)
Speed: 2800 RPM (50 Hz), 3250 RPM (60 Hz)
Airflow: 2.7 m³/min (95.3 CFM) (50 Hz), 3.0 m³/min (106 CFM) (60 Hz)
Static Pressure: 81 Pa (0.325 IN H2O) (50 Hz), 81 Pa (0.325 IN H2O) (60 Hz)
Noise Level: 43 dB(A) (50 Hz), 46 dB(A) (60 Hz)
Bearing Type: Ball Bearing
Frame Material: Die-cast aluminum alloy
Impeller Material: Plastic (Polycarbonate)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 60 °C
Motor Protection: Impedance protection
Termination: 2-wire leads
Approval: UL, CSA, JET, CE
Application: Industrial cooling, general purpose ventilation, and equipment cooling.
