Description

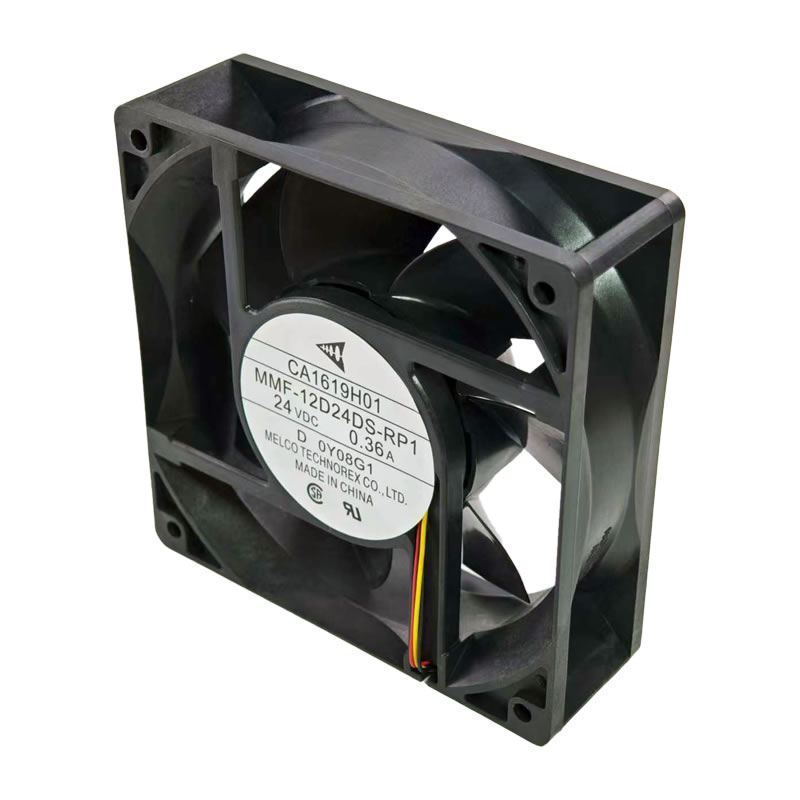

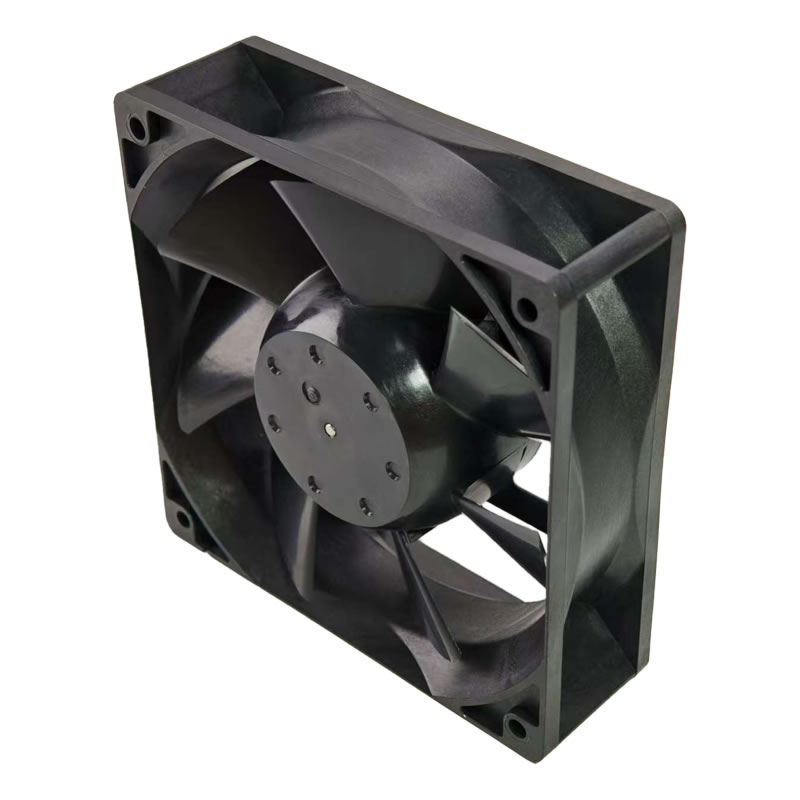

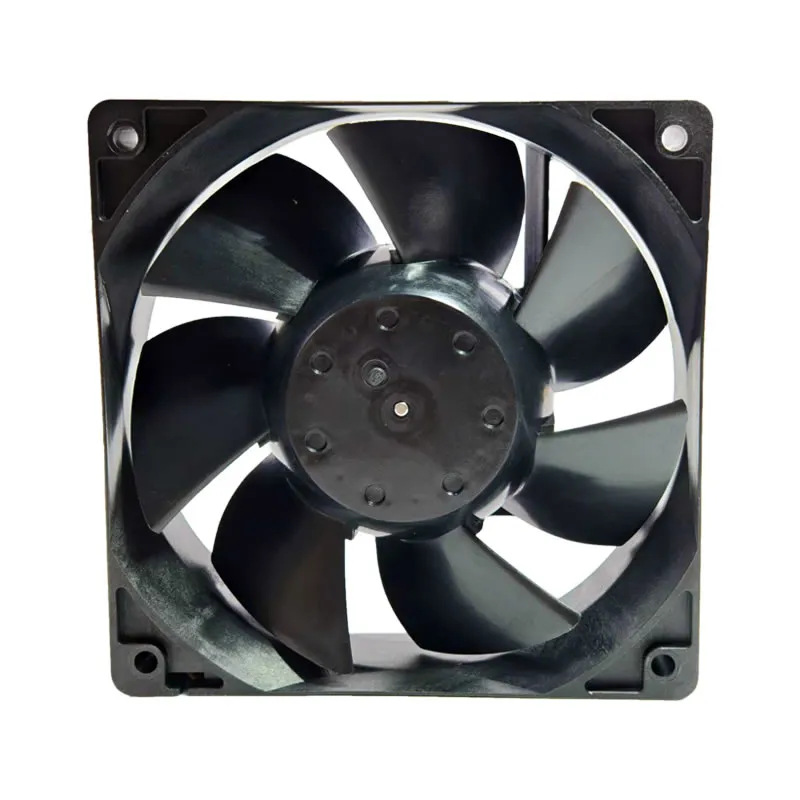

The Melco MMF-12D24DS-RP1 is a 24V DC Axial Fan with dimensions of 120x120x38mm. It operates within a voltage range typically from 14.0 to 27.6V DC. The fan has a rated current of 0.36A and a power consumption of 8.64W, achieving a speed of 2000RPM. It provides an airflow of 132.5m³/h (78.0 CFM) and a static pressure of 29.4Pa (0.12 inchH2O), with a noise level of 31.0dB(A). It is equipped with ball bearings for a life expectancy of 70000 hours at 40°C. Both the frame and impeller are typically made of plastic. It commonly features a 3-wire termination with a speed sensor (FG/Tachometer) for monitoring. This model is designed to operate within an ambient temperature range of -10 to 70°C and includes locked rotor protection and auto restart features.
MMF-12D24DS-RP1 Fan Parameters
Model: MMF-12D24DS-RP1
Manufacturer: Melco THECHNOREX
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14.0 .. 27.6 V DC
Rated Current: 0.36 A
Power Consumption: 8.64 W
Speed: 2000 RPM
Airflow: 132.5 m³/h (78.0 CFM)
Static Pressure: 29.4 Pa (0.12 inchH2O)
Noise Level: 31.0 dB(A)
Bearing Type: Ball Bearing
Material Frame: Plastic
Material Impeller: Plastic
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy at 40 °C: 70000 h
Termination: 3-wire leads (Red: +, Black: -, Yellow: FG/Tachometer)
Motor Protection: Locked Rotor Protection, Auto Restart
Features: Speed Sensor (FG/Tachometer)
Application: Suitable for power supplies, industrial equipment, servers, and other applications requiring reliable cooling with speed monitoring.
