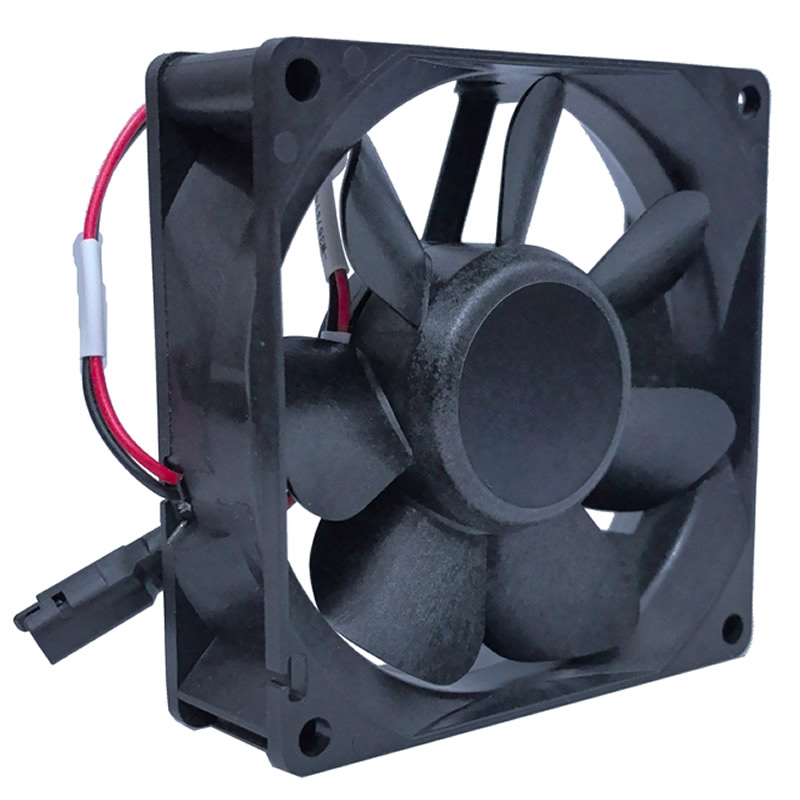

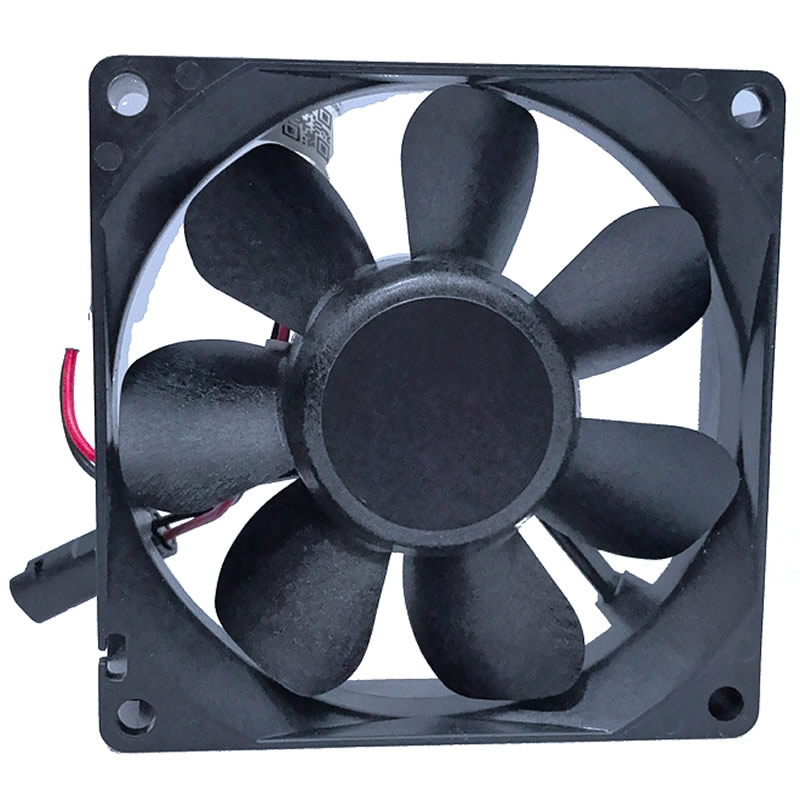

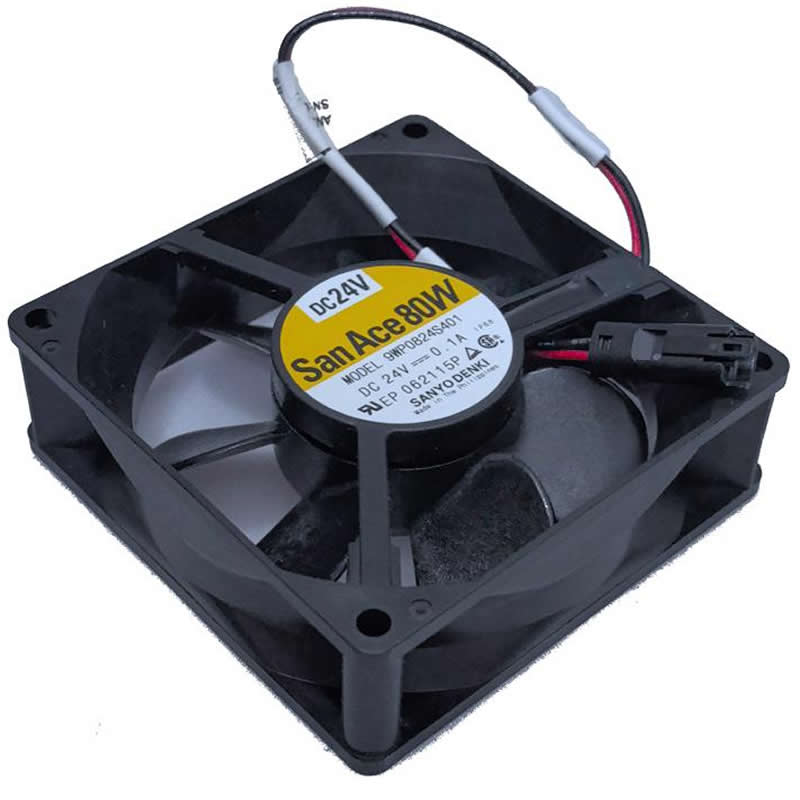

9WP0824S401 Sanyo 24V 0.1A IP68 Inverter fan

Description

Model: 9WP0824S401
Type: DC axial fan, Waterproof fan
Dimensions: 80×80×25mm
Rated voltage: 24V
Operating voltage range: 20.4V ~ 27.6V
Current: 0.1A
Power consumption: 3.84W
Speed: 4000 RPM
Air volume: 1.2 m³/min (42.4 CFM)
Static pressure: 58 Pa (0.23 inchH₂O)
Noise level: 38 dB(A)
Operating temperature range: -20°C to +70°C
Life expectancy: 40,000 hours at 60°C, 70,000 hours at 40°C
Protection level: IP68
Bearing type: Ball bearing
Housing material: Plastic (black)
Impeller material: Plastic (black)
Termination:2 Wire Leads
Life and reliability: Life expectancy at 60°C is 40,000 hours at 40°C, 70,000 hours at 40°C, indicating high durability under standard conditions.
Environmental adaptability: The operating temperature range is -20°C to +70°C, suitable for a variety of industrial environments.
Connection and installation: The lead type is not specified, but similar models are usually 3 wires (positive, negative, pulse sensor).
Material and structure: The housing and impeller are both plastic with black coating to ensure durability and aesthetics.
9WP0824S401 is a DC axial fan produced by SANYO DENKI. It is an oil-proof fan in the San Ace series and is widely used in industrial cooling applications that require Waterproof performance. 9WP0824S401 Sanyo 24V 0.1A IP68 Inverter fan
