Description

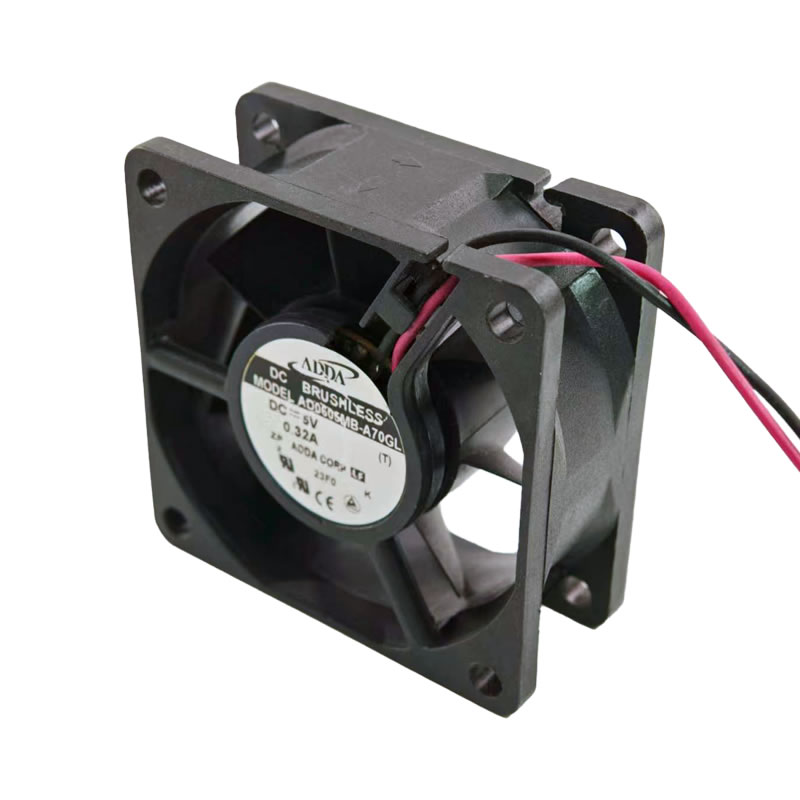

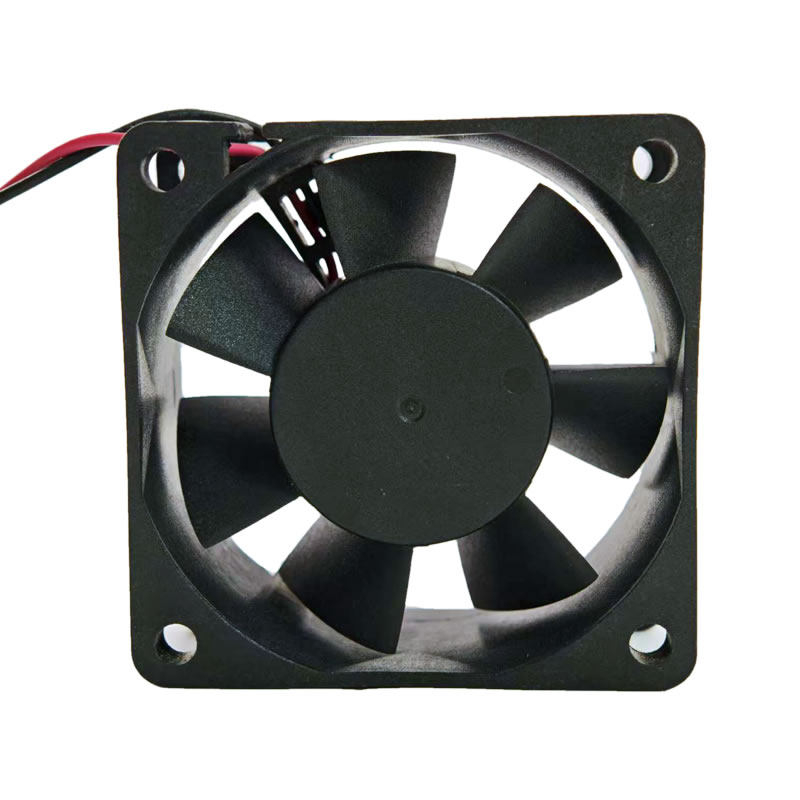

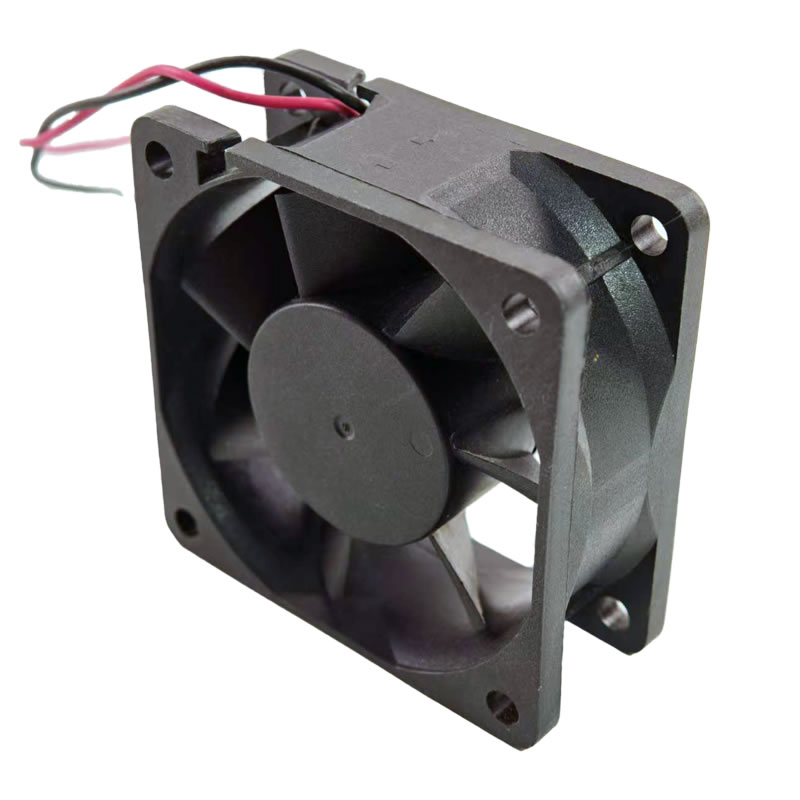

The ADDA AD0605MB-A70GL is a high-performance DC Axial Fan with dimensions of 60×60×25 mm. Operating at 5 V, this Medium Speed fan uses a Brushless DC Motor with 7 Blades, featuring a Rated Current of 0.32 A and Power Consumption of 1.60 W. It is a standard 2-wire model with Ball Bearings, rated for a Nominal Speed of 3,500 RPM. It delivers an Airflow of 30.6 m3 /h (18.0 CFM) and Static Pressure of 30.1 Pa (0.121 inAq), with a Noise Level of 24 dB(A).
AD0605MB-A70GL Fan Parameters
Model: AD0605MB-A70GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60×60×25 mm
Operating Voltage: 5 V
Rated Current: 0.32 A
Power Consumption: 1.60 W
Nominal Speed: 3,500 RPM
Airflow: 30.6 m3/h (18.0 CFM)
Static Pressure: 30.1 Pa (0.121 inAq)
Noise Level: 24 dB(A)
Motor Design: Brushless DC Motor
Number of blades: 7
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Weight: 68 g
Motor Protection: By Impedance
Safety Approvals: UL, TUV, CE
RoHS Status: Compliant
Application
The AD0605MB-A70GL is an ideal cooling solution for various 5 V DC applications where good airflow and medium static pressure capability are needed, such as cooling $\text{CPU}$s, chipsets, or providing ventilation in dense, low-voltage electronic enclosures, IoT devices, and small network equipment.
