Description

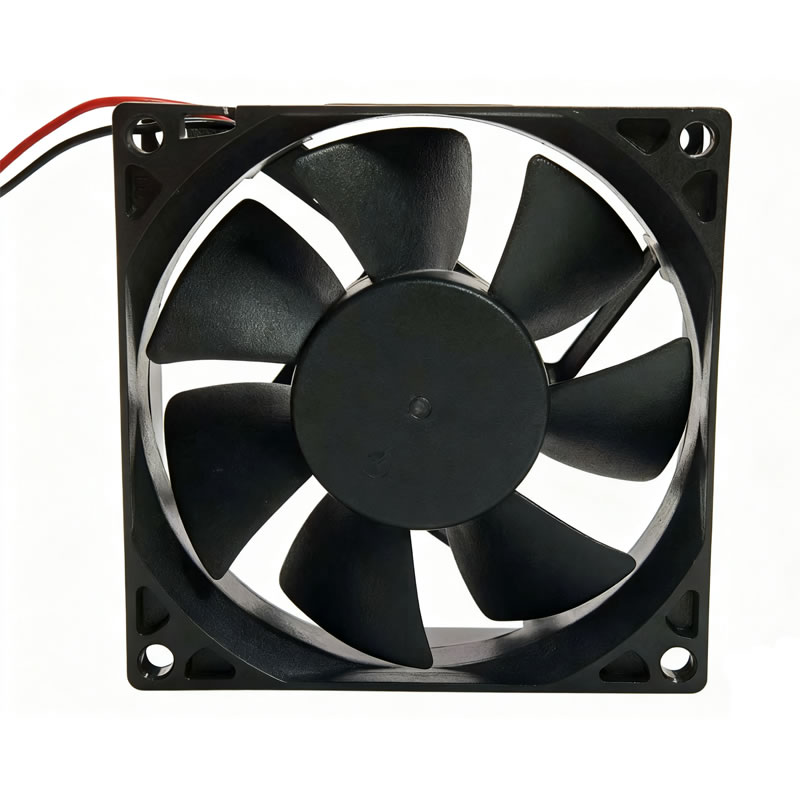

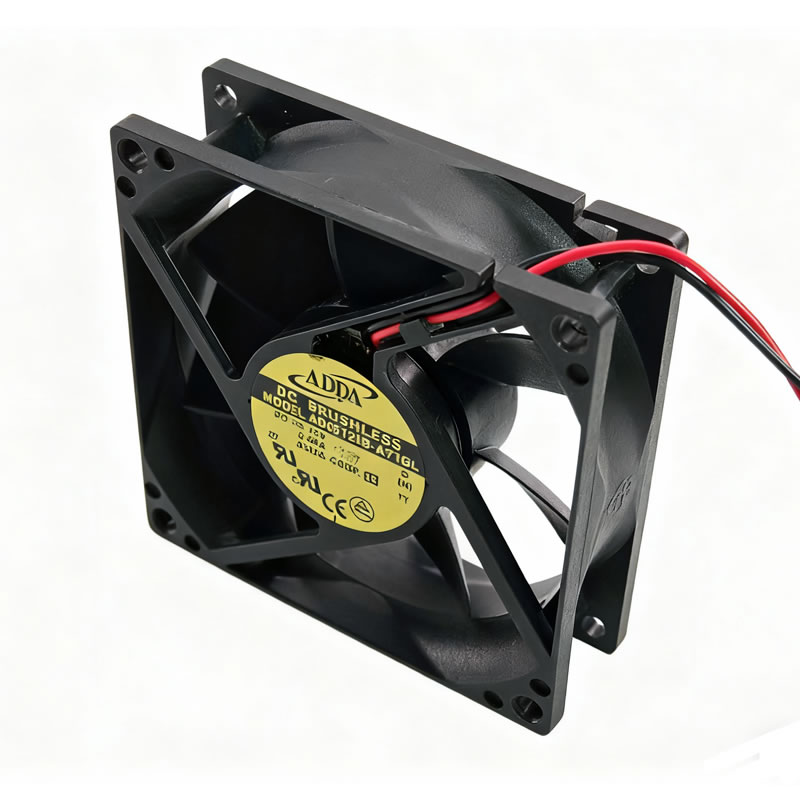

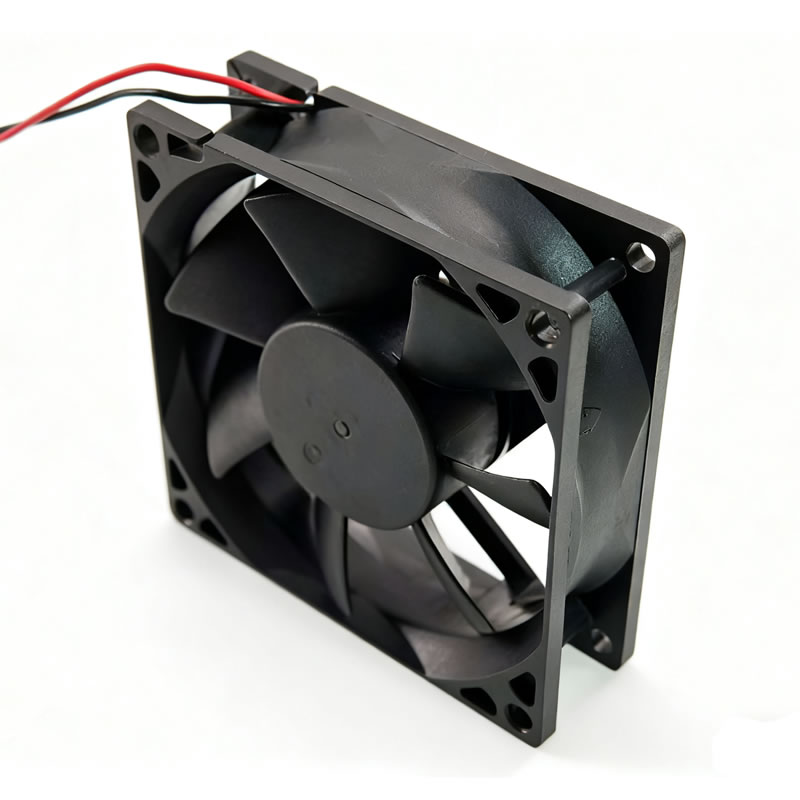

The ADDA AD0812UB-A71GL is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating at 12 V, this Ultra-High Speed fan has a Rated Current of 0.45 A and a Power Consumption of 5.40 W. It utilizes a Ball Bearing system and operates at a Nominal Speed of 3,900 RPM. It delivers an Airflow of 84.9 m3/h (50.0 CFM) and Static Pressure of 70.8 Pa (0.279 inAq), with a Noise Level of 41.0 dB(A).
AD0812UB-A71GL Fan Parameters
Model: AD0812UB-A71GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 12 V
Rated Current: 0.45 A
Power Consumption: 5.40 W
Nominal Speed: 3,900 RPM
Airflow: 84.9 m3/h (50.0 CFM)
Static Pressure: 70.8 Pa (0.279 inAq)
Noise Level: 41.0 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Frame Material: Polybutylene Terephthalate (PBT)
Impeller Material: Polybutylene Terephthalate (PBT)
Weight: 86 g
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant
Application
The AD0812UB-A71GL is a high-performance cooling solution designed for systems that require significant airflow and static pressure within a standard 80 mm footprint. It is widely used in high-density electronic equipment such as servers, industrial VFDs (Variable Frequency Drives), power supplies, and telecommunication cabinets to effectively dissipate heat from critical components.
