Description

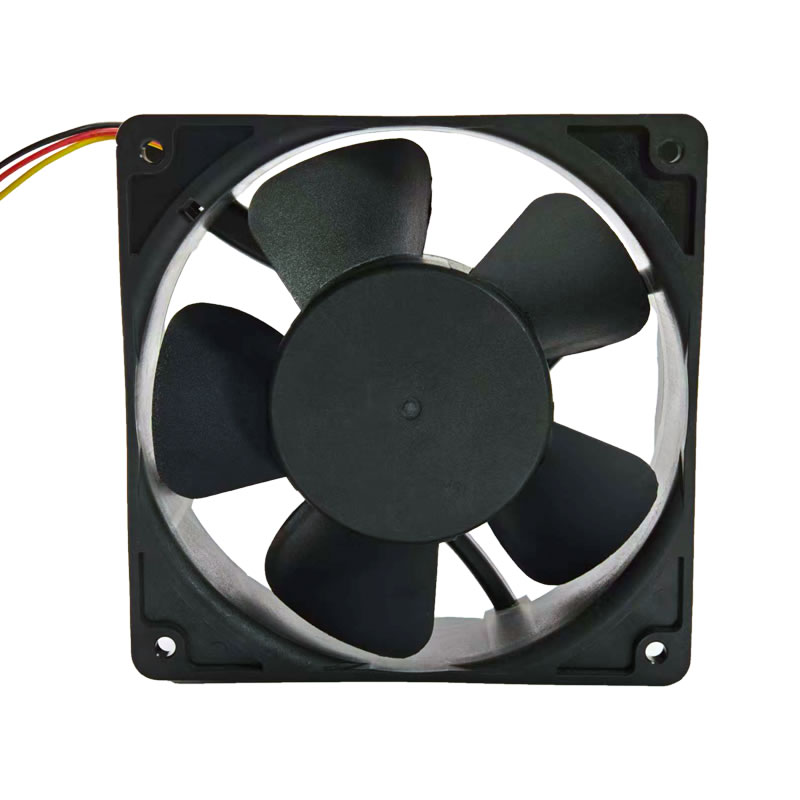

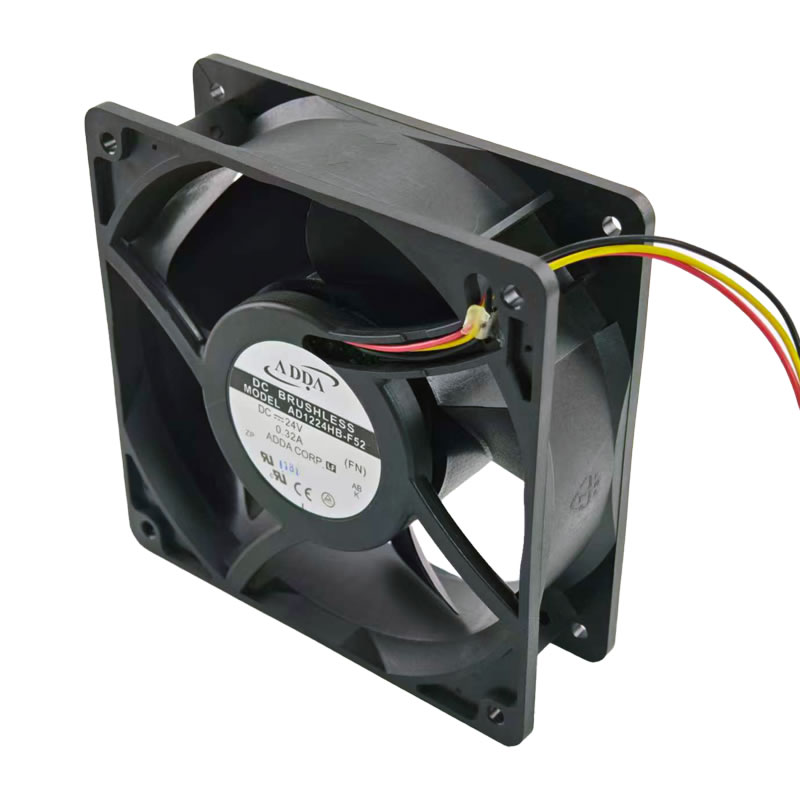

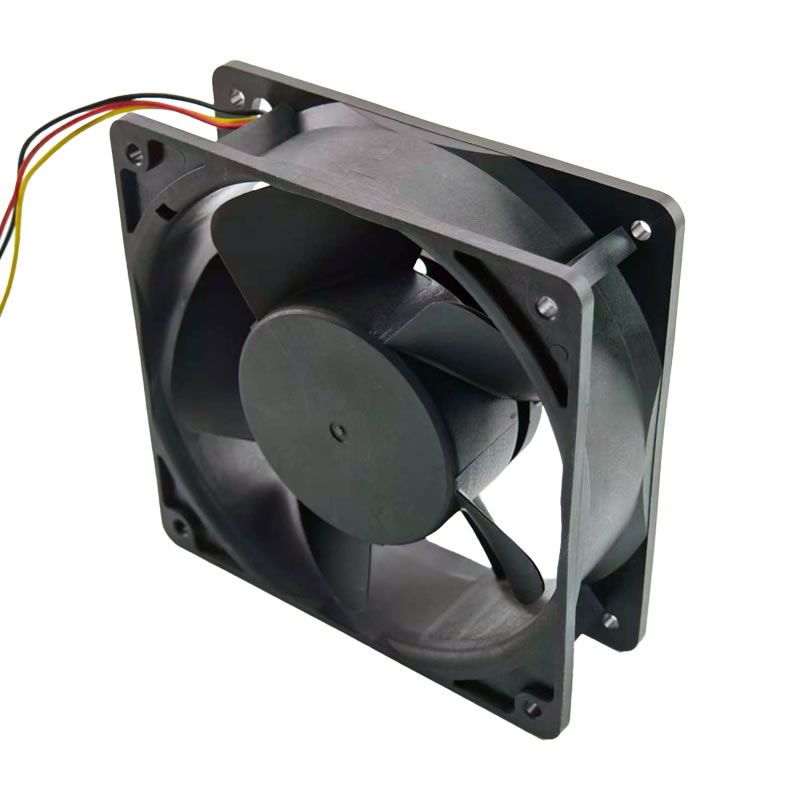

he ADDA AD1224HB-F52 is a high-performance DC Axial Fan with dimensions of 120×120×38 mm. This fan operates on 24 VDC, delivering a high airflow of 178.0 m3/h (104.8 CFM) and a static pressure of 67.2 Pa (0.270 inH2O) at a speed of 2,800 RPM. It features Two Ball Bearings and motor protection via an internal IC, with a rated current of 0.32 A and multiple safety approvals (UL, CSA, TUV, CE).
AD1224HB-F52 Fan Parameters
Model: AD1224HB-F52
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 120×120×38 mm
Nominal Voltage: 24 VDC
Rated Current: 0.32 A
Rated Power: 7.68 W
Rated Speed: 2,800 RPM
Airflow: 178.0 m3/h (104.8 CFM)
Static Pressure: 67.2 Pa
Noise Level: 42.8 dB(A)
Bearing System: Two Ball Bearing
Material – Impeller: UL94V−0 Glass Filled PBT
Termination: 3-Wire Leads
Weight: 297 g
Approvals: UL, CSA, TUV, CE
Application
The AD1224HB-F52 is typically used for high-volume air movement in server cabinets, telecommunication systems, industrial power supplies, networking equipment, and general-purpose cabinet cooling.
