Description

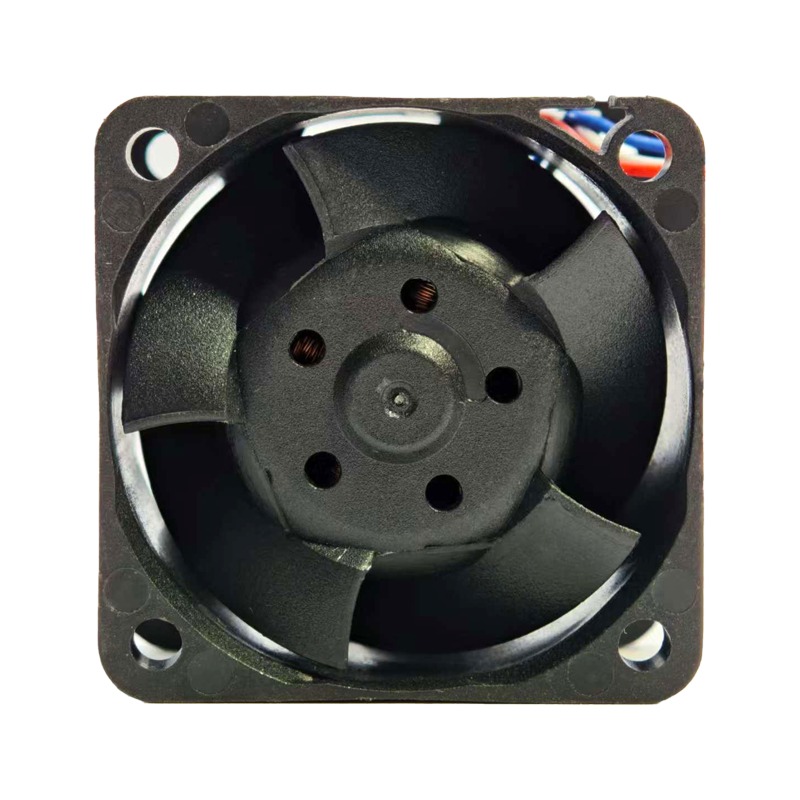

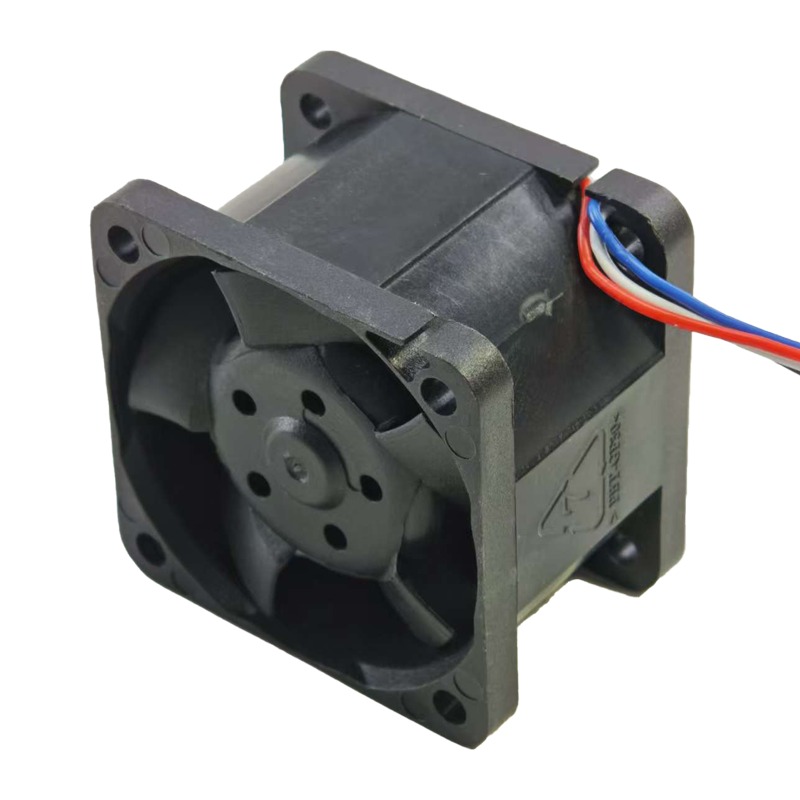

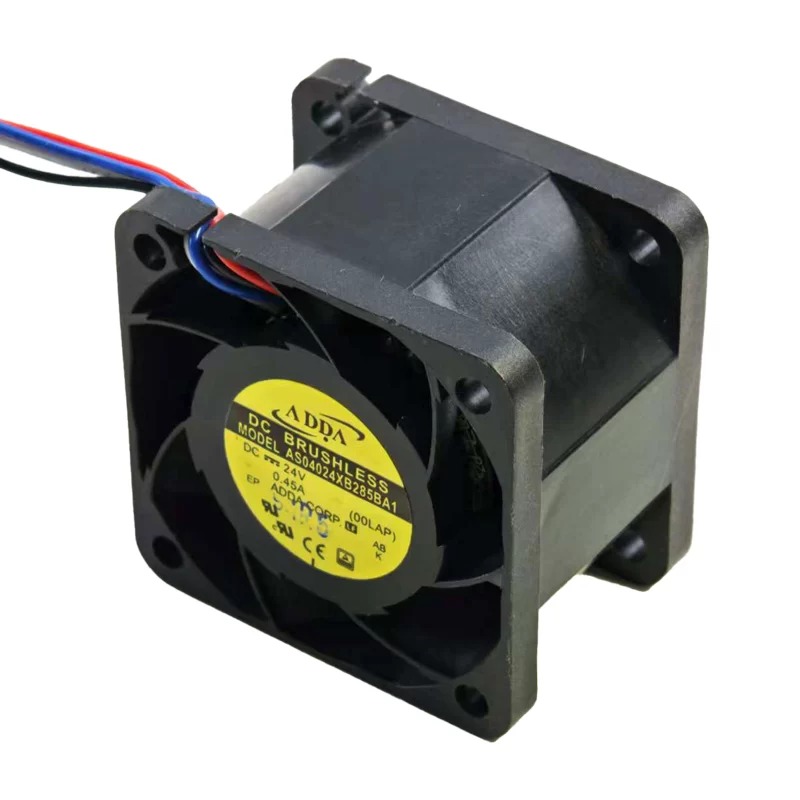

The ADDA AS04024XB285BA1 is a high-performance DC Axial Fan with dimensions of 40×40×28 mm. Operating at 24 V, this Extreme High Speed model (XB) has a Rated Current of 0.45 A and Power Consumption of 10.8 W. It delivers an Airflow of 38.01 m3/h and an exceptionally high Static Pressure of 655.4 Pa at a Nominal Speed of 20,000 RPM. The fan features a Dual Ball Bearing system and a 4-Wire termination for Pulse Width Modulation speed control and Frequency Generator (Tachometer) monitoring.
AS04024XB285BA1 Fan Parameters
Model: AS04024XB285BA1
Manufacturer: ADDA
Type: DC PWM Axial Fan
Dimensions: 40×40×28 mm
Operating Voltage: 24 V
Rated Current: 0.45 A
Power Consumption: 10.8 W
Nominal Speed: 20,000 RPM
Airflow: 38.01 m3/h (22.37 CFM)
Static Pressure: 655.4 Pa (2.63 inAq)
Noise Level: 61.1 dB(A)
Bearing Type: Dual Ball
Motor Design: Brushless DC Motor
Termination: 4-Wire (PWM Control and FG Signal)
Motor Protection: Motor protective circuit
Frame Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Operating Temperature: −10 °C to 70 °C
Life Expectancy: 70,000 hours (at 40 °C)
Available Features: Frequency Generator (FG), Pulse Width Modulation (PWM)
Application
The AS04024XB285BA1 is primarily used in high-density electronic environments such as 1U and 2U rackmount servers, data storage arrays, high-performance network switches and routers, industrial control systems, embedded devices, and telecommunication equipment operating in confined spaces.
