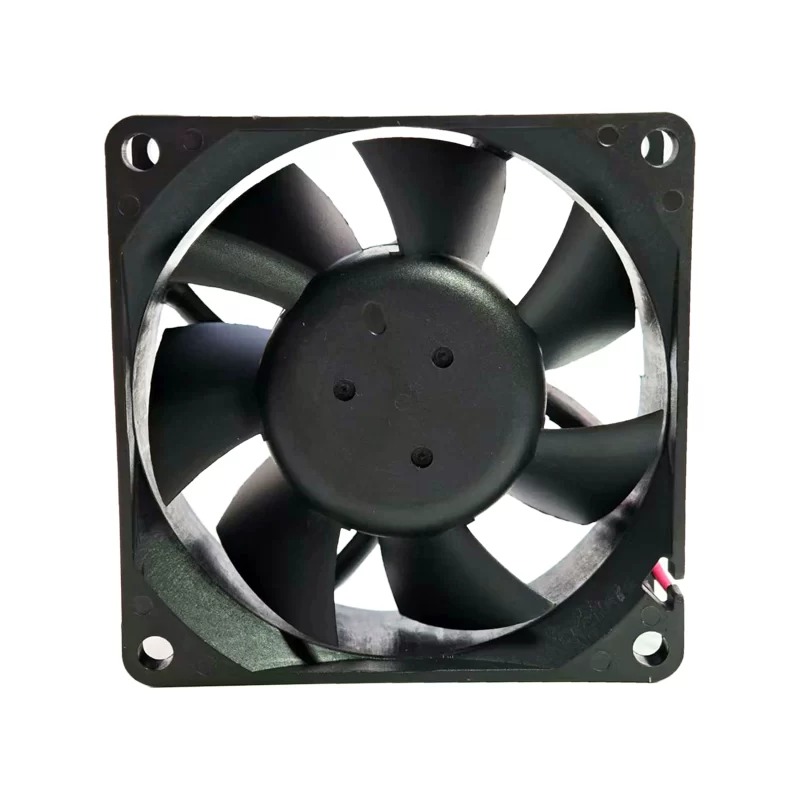

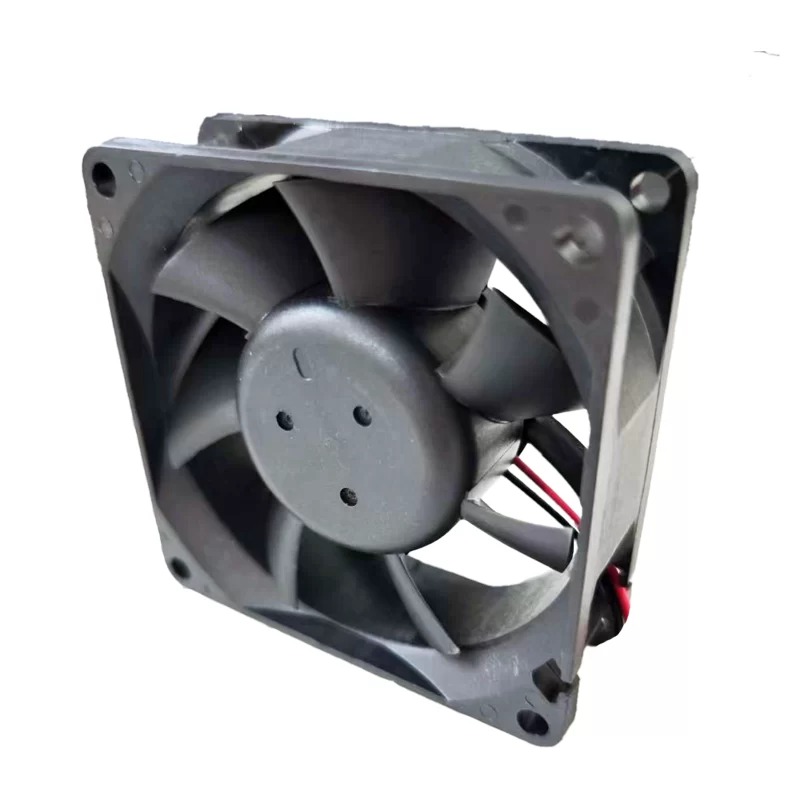

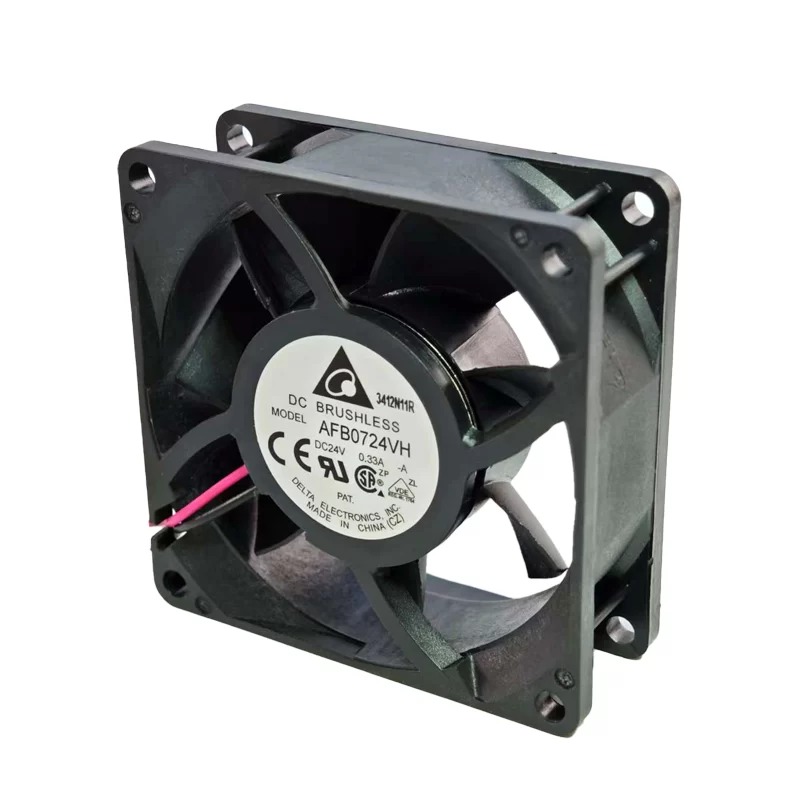

AFB0724VH-A Delta 24V 0.33A DC axial fan

Description

Model: AFB0724VH-A
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 70x70x25mm
Nominal Voltage: 24VDC
Operating Voltage Range: 14V to 26.4V DC
Current: 0.33A
Power Consumption: 7.92W
Speed: 5500RPM
Airflow: 52.4CFM
Static Pressure: 0.433 In H2O (approx. 107.9 Pa)
Noise Level: 47.5dBA
Bearing Type: Dual Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 2-wire leads
Frame Material: Plastic (UL94V-0 flame retardant)
Impeller Material: Plastic (UL94V-0 flame retardant)
Features: Brushless DC motor, polarity protected, locked rotor protection.
Delta Brand new original authentic AFB0724VH-A 24V 0.33A 7025 cooling fan
The Delta AFB0724VH-A is a high-performance 24V DC axial fan, measuring 70mm x 70mm x 25mm, manufactured by Delta Electronics. This fan is engineered for demanding cooling applications that require significant airflow and static pressure. It features durable dual ball bearings, contributing to a long operational lifespan of 70,000 hours at 40°C. Drawing 0.33A of current, it consumes 7.92W of power. This fan operates at a high speed of 5500 RPM, delivering a strong 52.4 CFM of airflow and generating 0.433 inches of H2O static pressure, with a moderate 47.5 dBA noise level. Equipped with 2-wire leads and featuring locked rotor protection, the Delta AFB0724VH-A is an excellent choice for cooling components in servers, industrial machinery, power supplies, and other high-density electronic enclosures that require robust and reliable thermal management.
