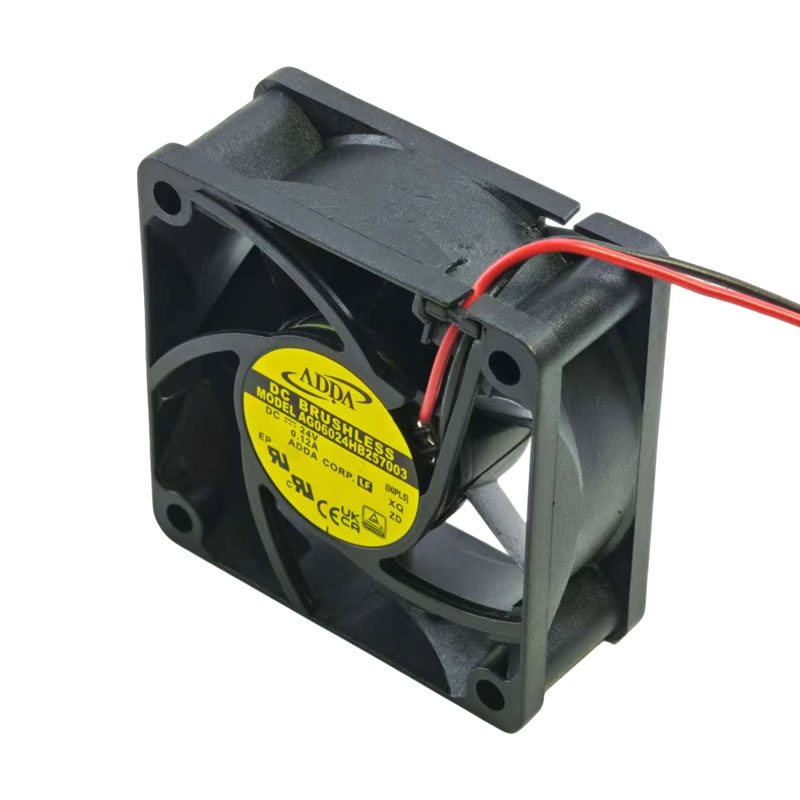

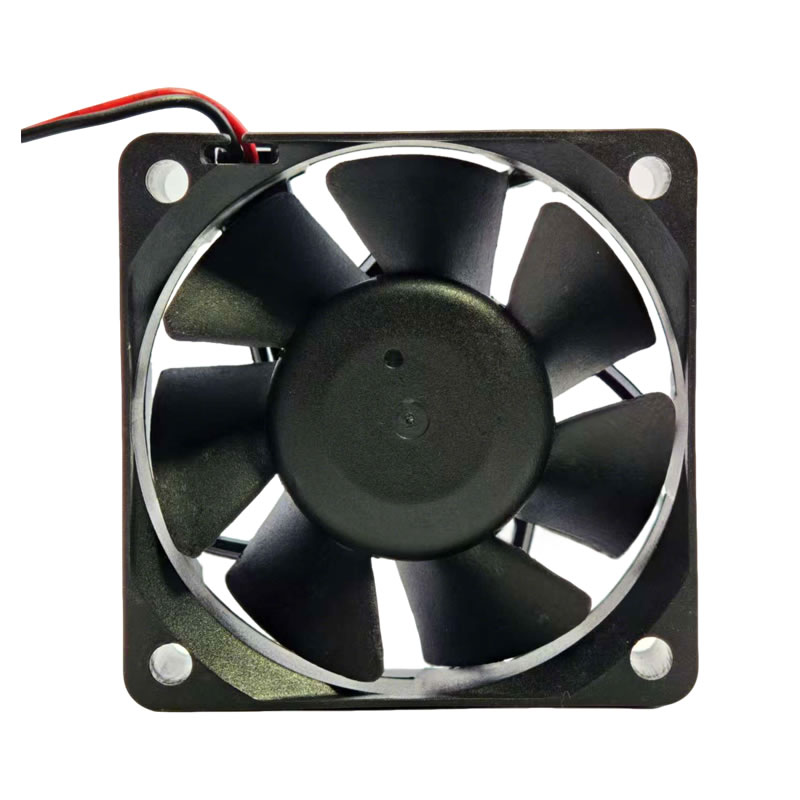

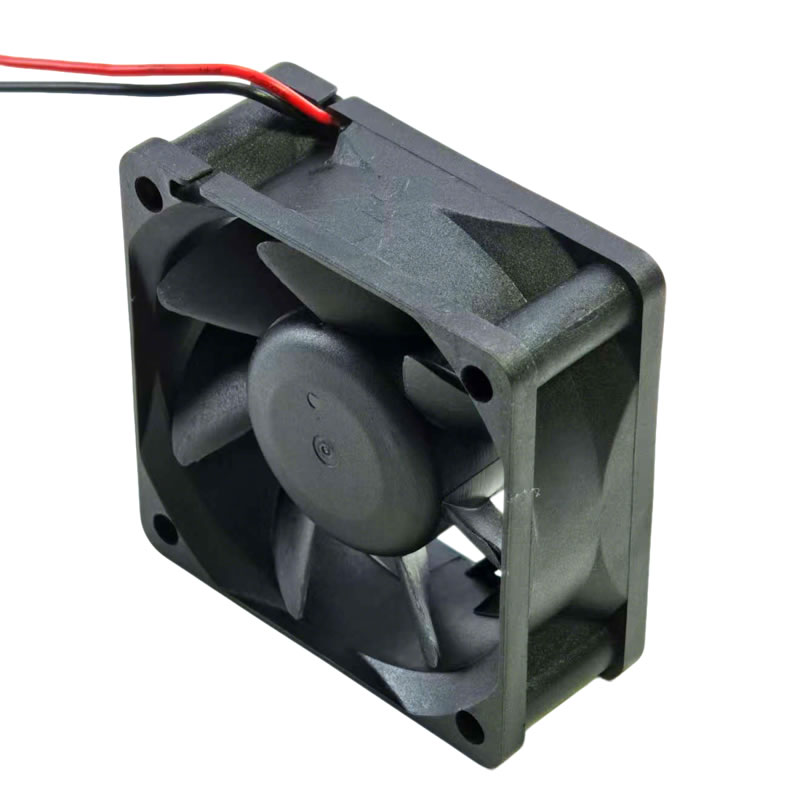

AG06024HB257003 ADDA 24V DC Axial Fan

Description

The ADDA AG06024HB257003 is a DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on 24V DC, drawing 0.12 A of current and consuming 2.88 W of power. This fan delivers an airflow of 23 CFM (39.1 m³/h) with a static pressure of 0.252 inch H₂O (63 Pa). It runs at a speed of 4500 RPM with a noise level of 33.1 dB(A). The fan uses ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 60 °C.

AG06024HB257003 Fan Parameters
Manufacturer: ADDA
Model: AG06024HB257003
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Current Rating: 0.12 A
Power Consumption: 2.88 W
Airflow: 23 CFM (39.1 m³/h)
Static Pressure: 0.252 inch H₂O (63 Pa)
Speed: 4500 RPM
Noise Level: 33.1 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 62 g

Application
The AG06024HB257003 fan is an effective cooling solution for various applications, including medical equipment, industrial control systems, network devices, and electronic enclosures that require reliable cooling.
