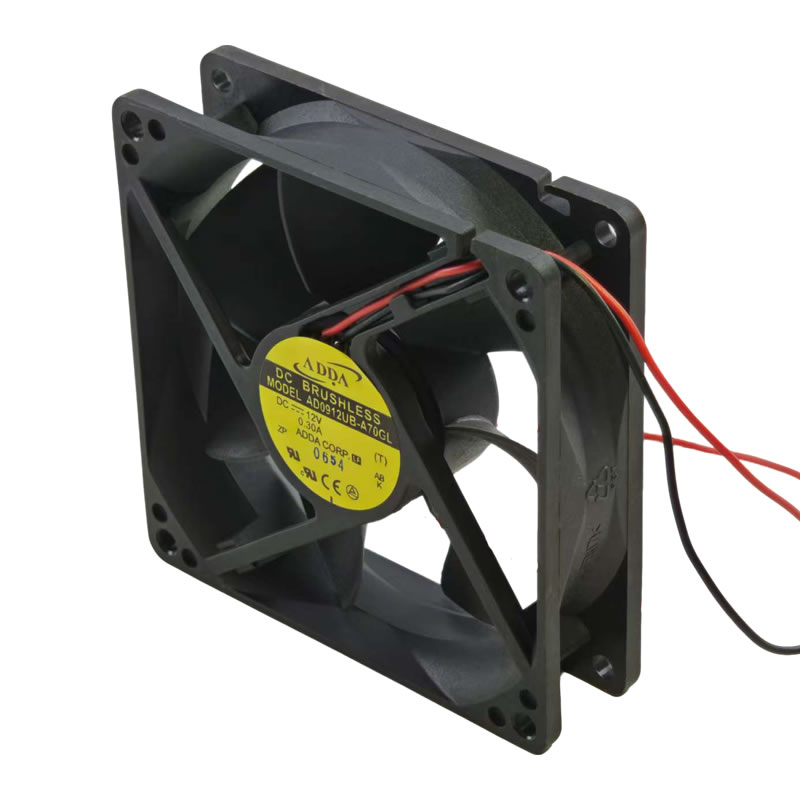

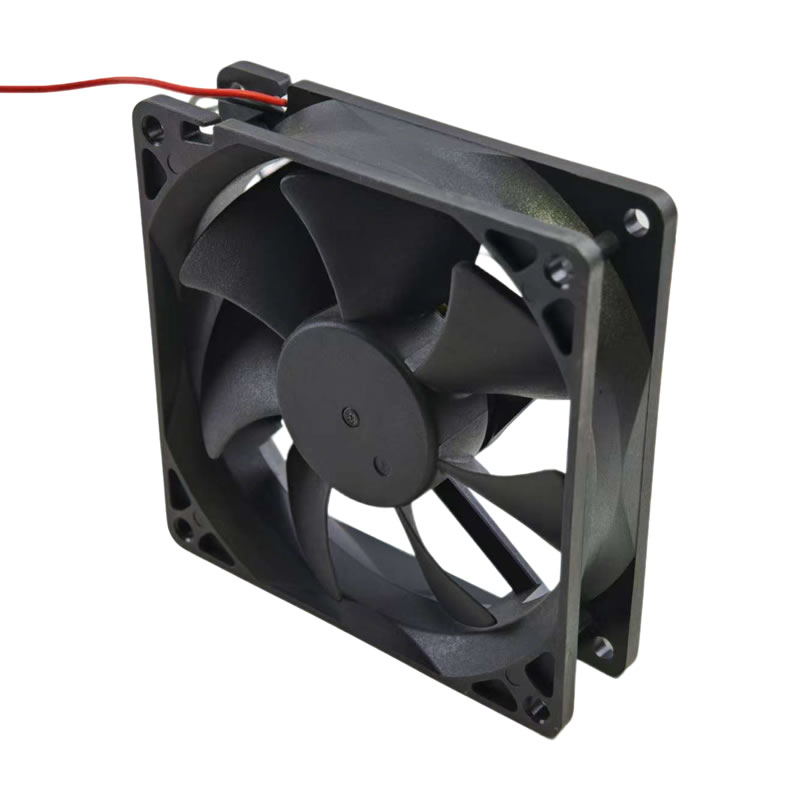

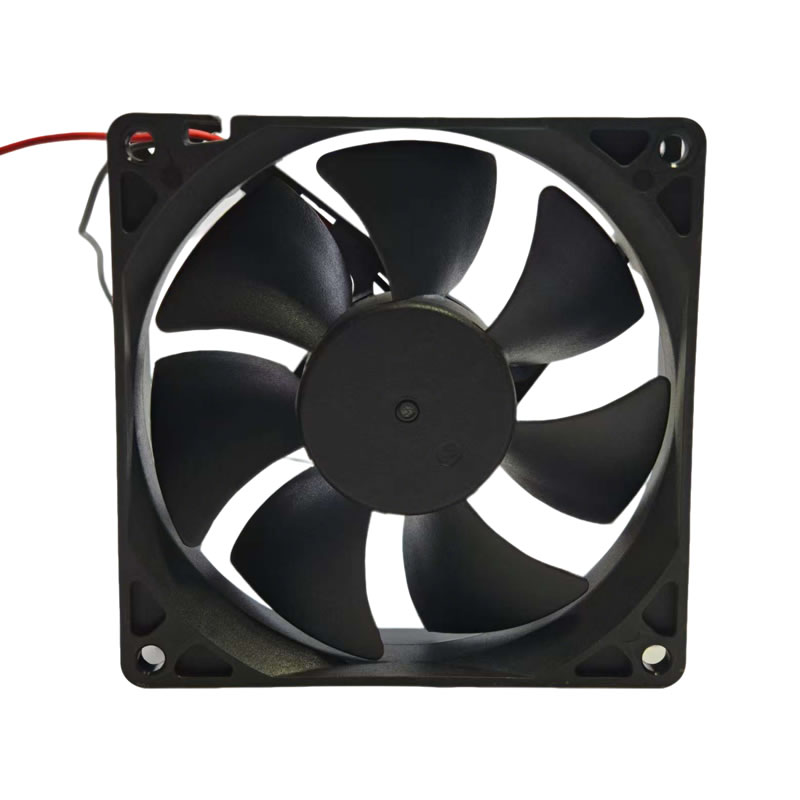

AD0912UB-A70GL ADDA 12V DC Axial Fan

Description

The ADDA AD0912UB-A70GL is a DC axial fan with dimensions of 92 x 92 x 25 mm. It operates on 12V DC, drawing 0.30 A of current and consuming 3.6 W of power. This fan delivers an airflow of 57.8 CFM (98.2 m³/h) with a static pressure of 0.156 inch H₂O (38.8 Pa). It runs at a speed of 3200 RPM, producing a noise level of 39.4 dB(A). The fan uses ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 60 °C.

AD0912UB-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD0912UB-A70GL
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.30 A
Power Consumption: 3.6 W
Airflow: 57.8 CFM (98.2 m³/h)
Static Pressure: 0.156 inch H₂O (38.8 Pa)
Speed: 3200 RPM
Noise Level: 39.4 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 101 g

Application
The AD0912UB-A70GL fan is an effective cooling solution for various applications, including computer systems, network equipment, power supplies, LED lighting enclosures, and electronic enclosures that require reliable cooling.
