Description
Brand:Delta
Model:THA1248BE-D
Voltage:48VDC (operating range: 36-60VDC)
Current:2.6A
Power: 124.8W (calculated: 48V×2.6A)
Dimensions:120×120×38mm (12038 size)
Bearing Type: Dual Ball Bearing
Airflow:318CFM (8.91m³/min)
Static Pressure:770 Pa (3.091 inches H2O)
Speed:7600RPM
Noise Level: 72dB(A)
Control Interface: PWM speed control with tachometer output
Protection: Rotor lock protection
Frame Material: Full aluminum metal housing
Wiring: 4-wire connector
Applications: Servers, industrial equipment, high-heat dissipation systems
Certification: RoHS compliant
Packaging: Original factory box

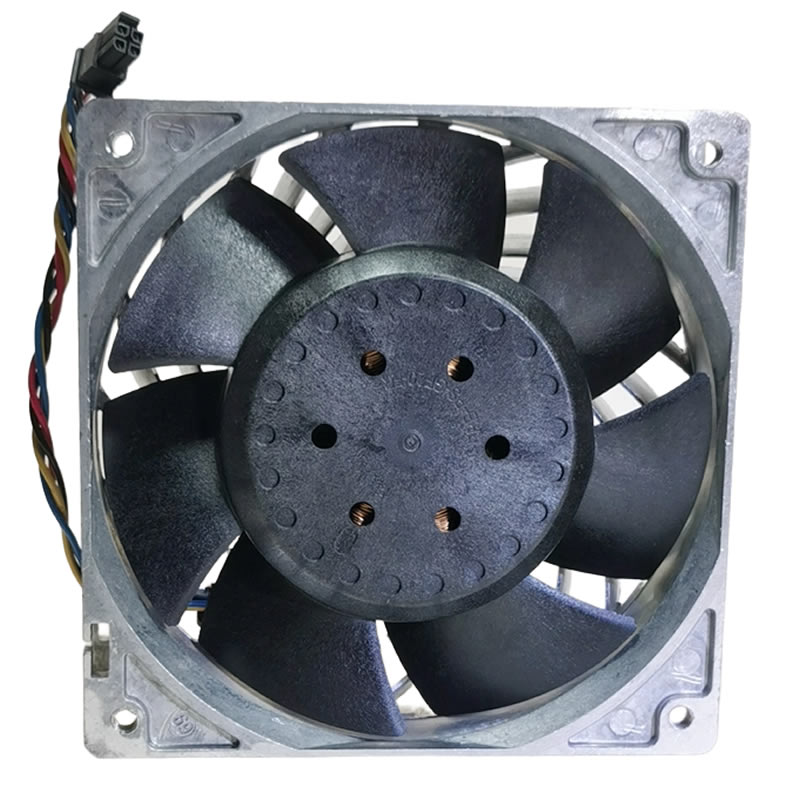

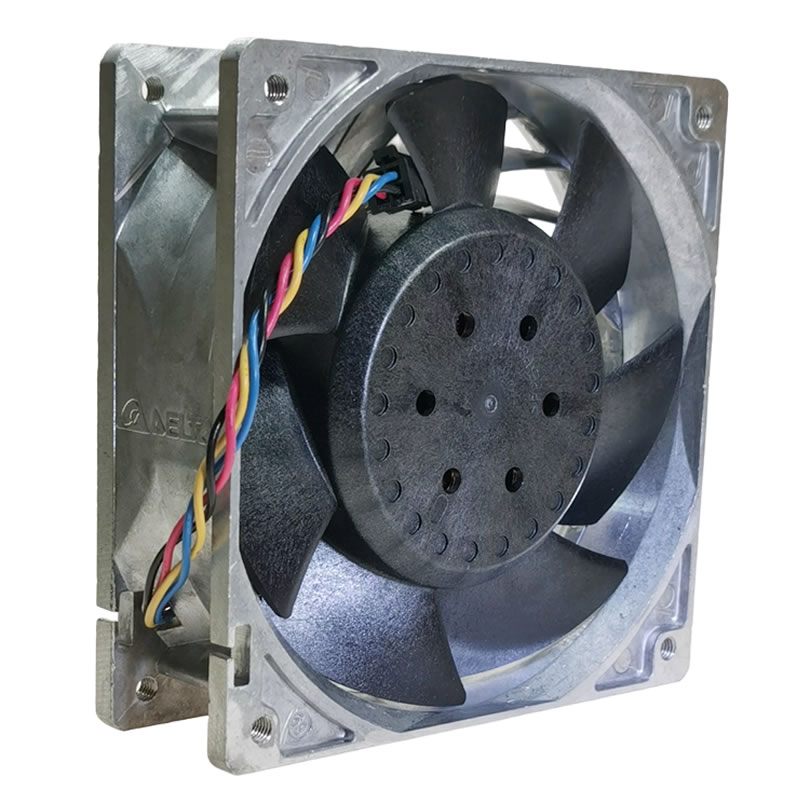

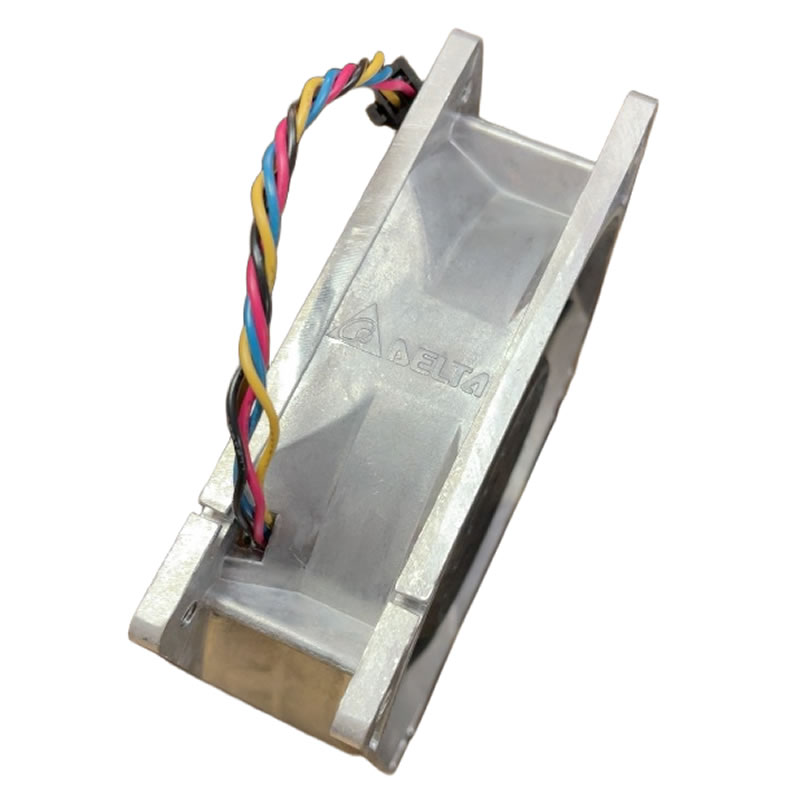

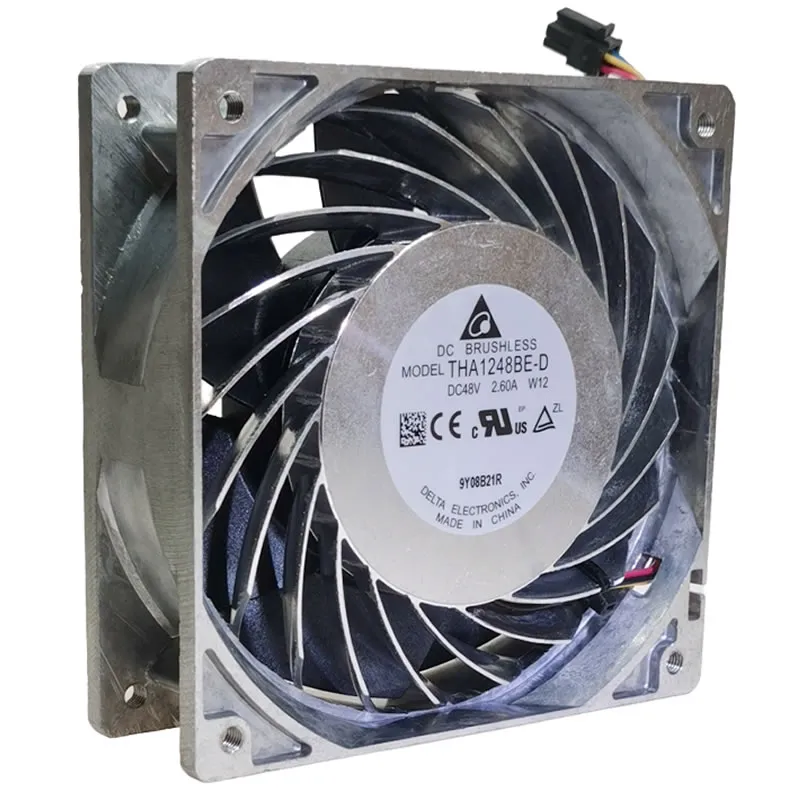

THA1248BE-D New original Delta fan 12038/48V 4-wire violent aluminum frame cooling fan
