Description

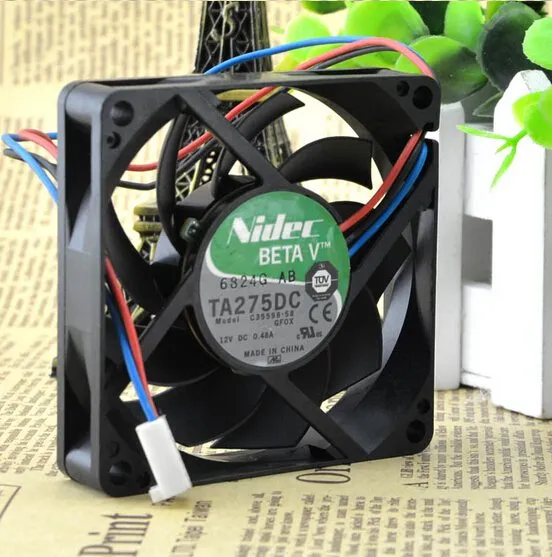

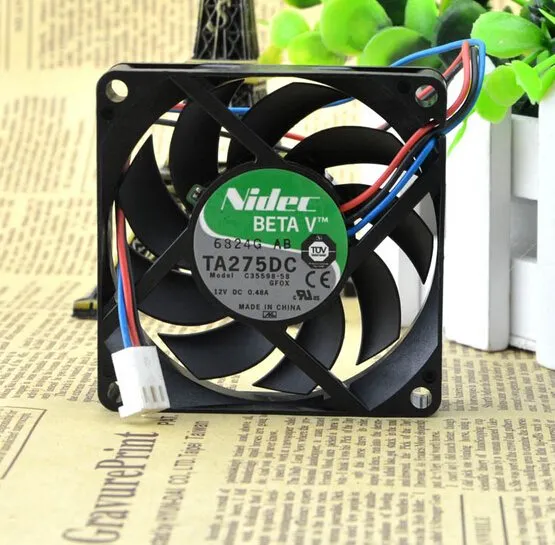

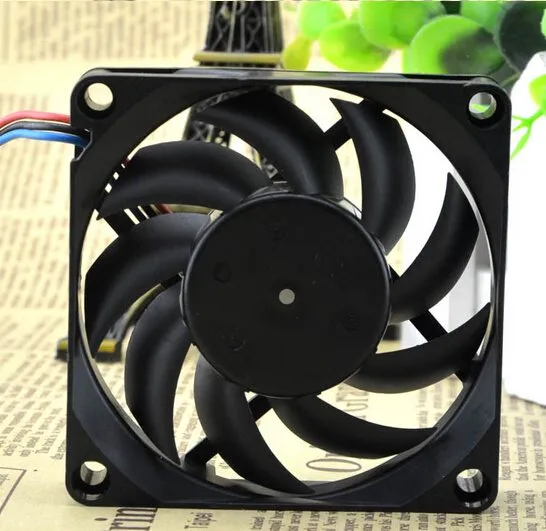

The NIDEC C35598-58 GFOX is a high-performance [DC Axial Cooling Fan] designed for [Server Thermal Management] and industrial electronics. This [12V Brushless Fan] offers robust performance in critical automation environments, ensuring optimal airflow and system stability.
NIDEC C35598-58 Key Features
- Industrial Grade: Constructed with reinforced PBT plastic housing and precision dual ball bearings for extended operational life.
- High Performance: Delivers high static pressure with a rated speed optimized for 0.48A current draw, ideal for dense enclosures.
- Connectivity: Features a standard 3-wire interface providing power, ground, and Tachometer (RPM) signal output for real-time monitoring.
- Reliability: Engineered for continuous duty cycles with a high Mean Time Between Failures (MTBF) exceeding 70,000 hours.
Technical Specifications for C35598-58
Comprehensive engineering data for verification:
| Part Number | C35598-58 |
| Manufacturer | Nidec Corporation |
| Series | GFOX / UltraFlo |
| Input Voltage | 12V DC |
| Operating Voltage Range | 10.2V – 13.8V DC |
| Rated Current | 0.48 A |
| Input Power | 5.76 W |
| Fan Dimensions (H x W) | 70mm x 70mm (7CM) |
| Fan Thickness (Depth) | 25mm (Standard Industrial) |
| Bearing System | Dual Ball Bearing |
| Rotational Speed | ~5,200 RPM |
| Airflow | ~45 CFM |
| Wire Configuration | 3-Wire Lead |
| Output Signal | Tachometer / FG (Frequency Generator) |
| Housing Material | Polybutylene Terephthalate (PBT) UL94V-0 |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Noise Level | ~42 dBA |
| Product Status | Active / Maintenance Spare |
| Application | Server Chassis / CPU Cooling |
Industrial Applications
Frequently deployed in Enterprise Servers, Telecommunication Racks, and Industrial Power Supplies. This unit is critical for controlling thermal envelopes in [High-Density Computing Machinery].
Installation & Quality Assurance
This NIDEC C35598-58 is a genuine spare part. Please refer to the official [Nidec] manual for wiring diagrams (Pin 1: GND, Pin 2: +12V, Pin 3: Sensor) and firmware configuration.
