Description

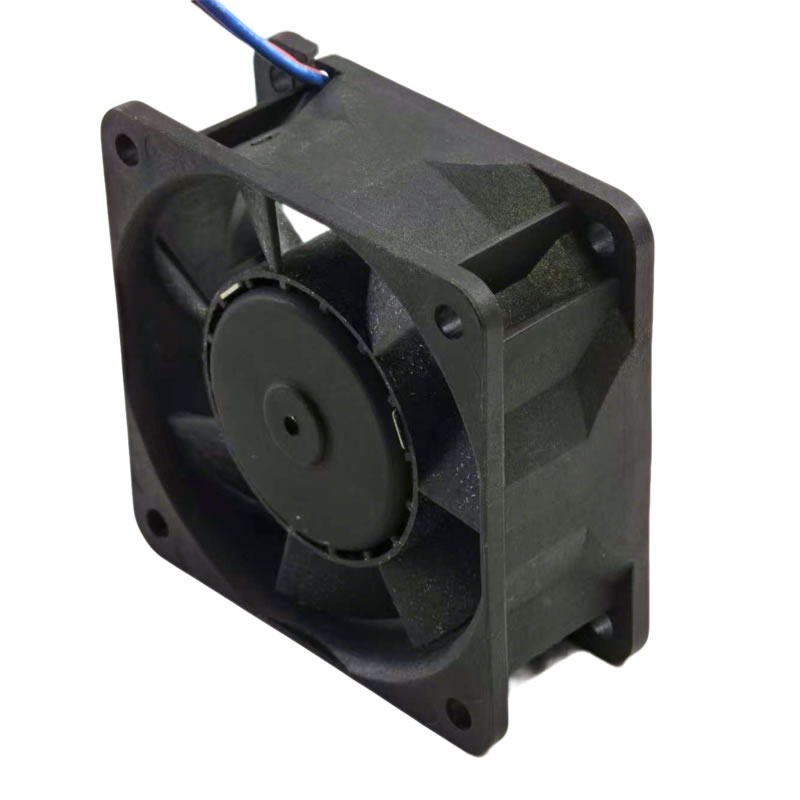

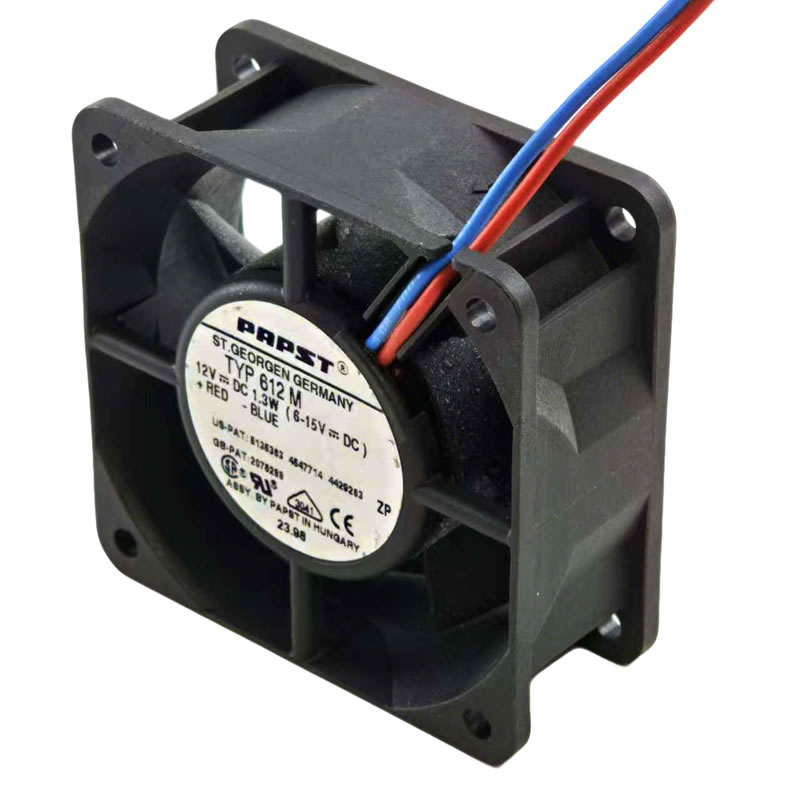

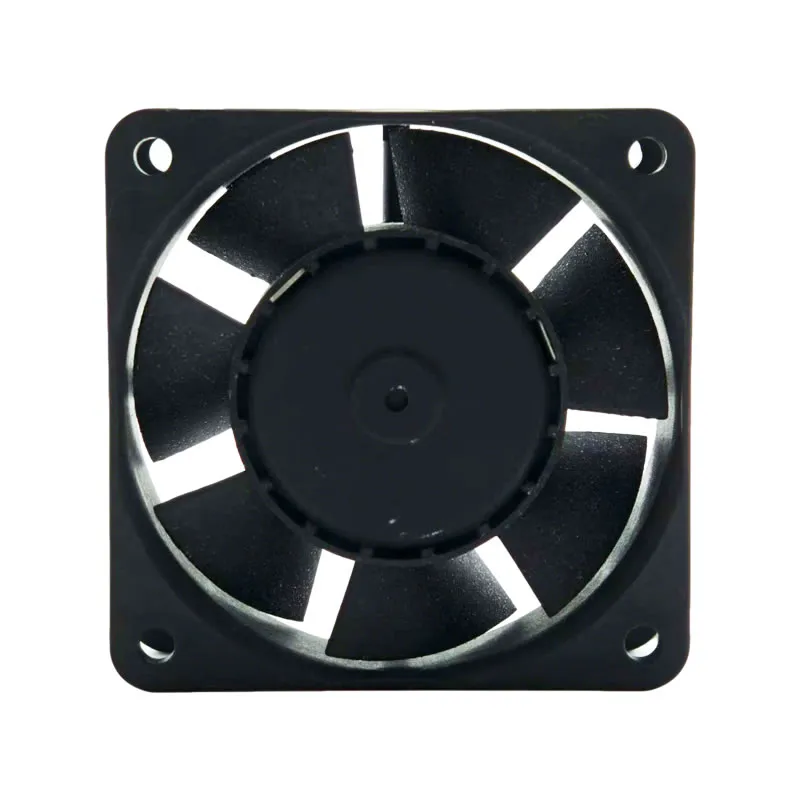

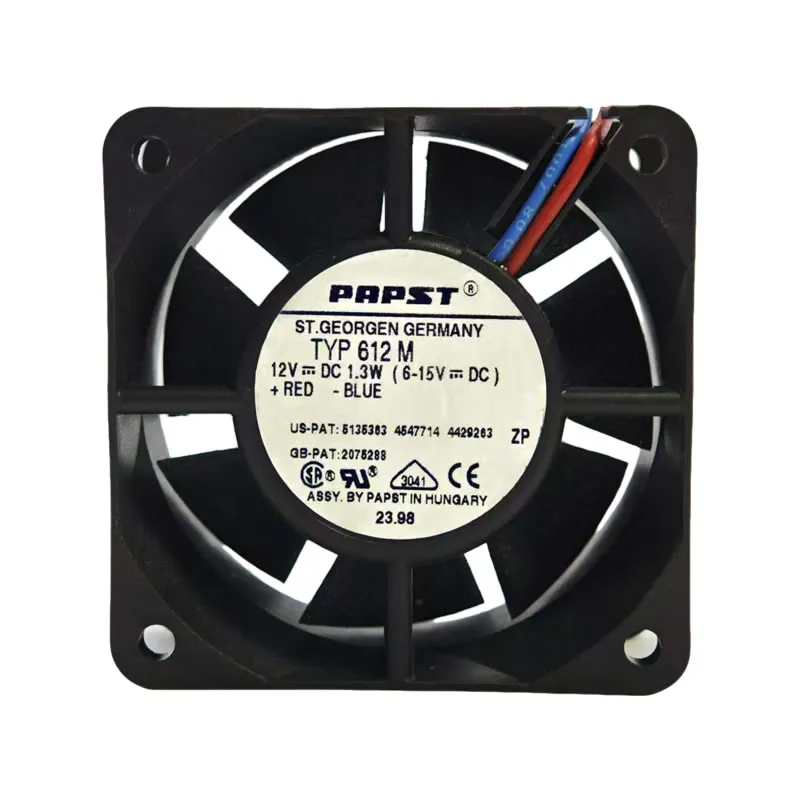

The ebmpapst TYP612M is a reliable DC axial fan with compact dimensions of 60 x 60 x 25 mm. It operates on a rated voltage of 12V DC, supporting a wide operating range of 6-15V. The fan consumes 1.3 W of power and runs at a speed of 4100 RPM. It delivers an airflow of 17.6 CFM (30m³/h) with a low noise level of 33 dB(A), making it suitable for applications where quiet operation is required. The fan features a ball bearing and is constructed from durable plastic. It is terminated with two-wire leads and has an impressive service life of 80,000 hours at 40°C.
TYP612M Fan Parameters
Manufacturer: ebmpapst
Model: TYP612M
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 6-15 V
Power Consumption: 1.3 W
Airflow: 17.6 CFM (30 m³/h)
Speed: 4100 RPM
Noise Level: 33 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C to 65 °C
Service Life: L10 at 40 °C 80,000 h
Application
The TYP612M fan is suitable for a wide range of applications that require a balance of efficient cooling and low noise in a compact form factor, such as in small electronic enclosures, medical devices, and industrial control panels.
